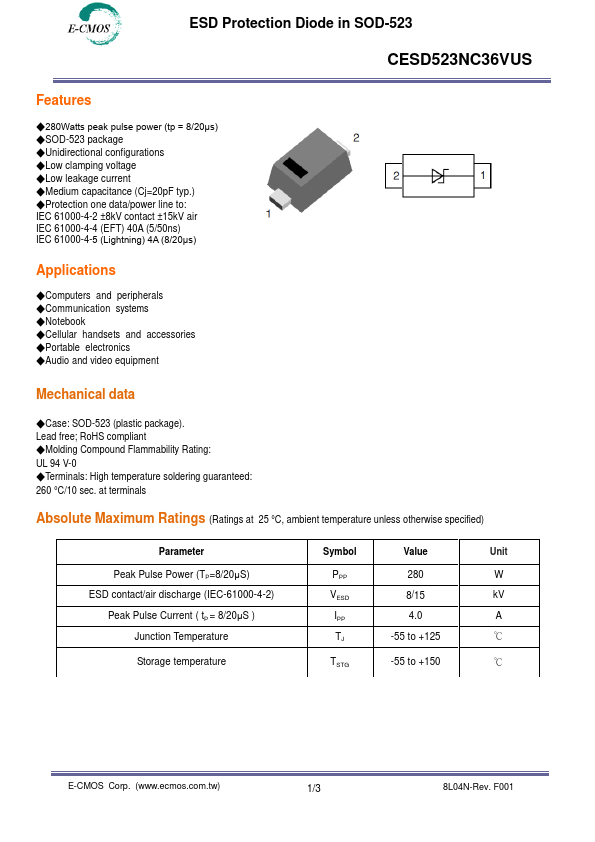

CESD523NC36VUS
Features
- 280Watts peak pulse power (tp = 8/20μs)
- SOD-523 package
- Unidirectional configurations
- Low clamping voltage
- Low leakage current
- Medium capacitance (Cj=20p F typ.)
- Protection one data/power line to: IEC 61000-4-2 ±8k V contact ±15k V air IEC 61000-4-4 (EFT) 40A (5/50ns) IEC 61000-4-5 (Lightning) 4A (8/20μs)
Applications
- puters and peripherals
- munication systems
- Notebook
- Cellular handsets and accessories
- Portable electronics
- Audio and video equipment
Mechanical data
- Case: SOD-523 (plastic package). Lead free; Ro HS pliant
- Molding pound Flammability Rating: UL 94 V-0
- Terminals: High temperature soldering guaranteed: 260 °C/10 sec. at terminals
Absolute Maximum Ratings (Ratings at 25 °C, ambient temperature unless otherwise specified)
Parameter
Symbol
Value
Unit
Peak Pulse Power (TP=8/20μS) ESD contact/air discharge (IEC-61000-4-2)
Peak Pulse Current ( t P = 8/20μS ) Junction Temperature
VESD
8/15 k V
-55 to +125
℃

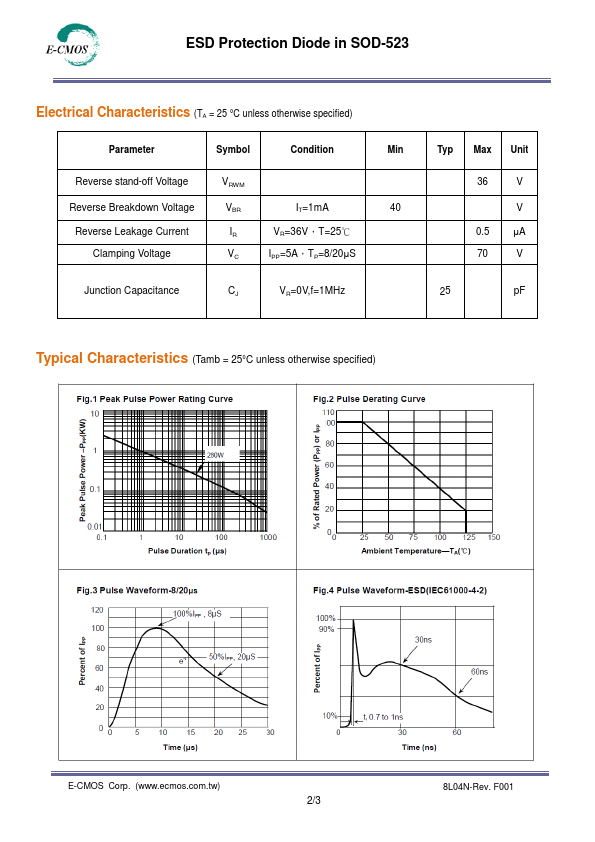

Storage...
