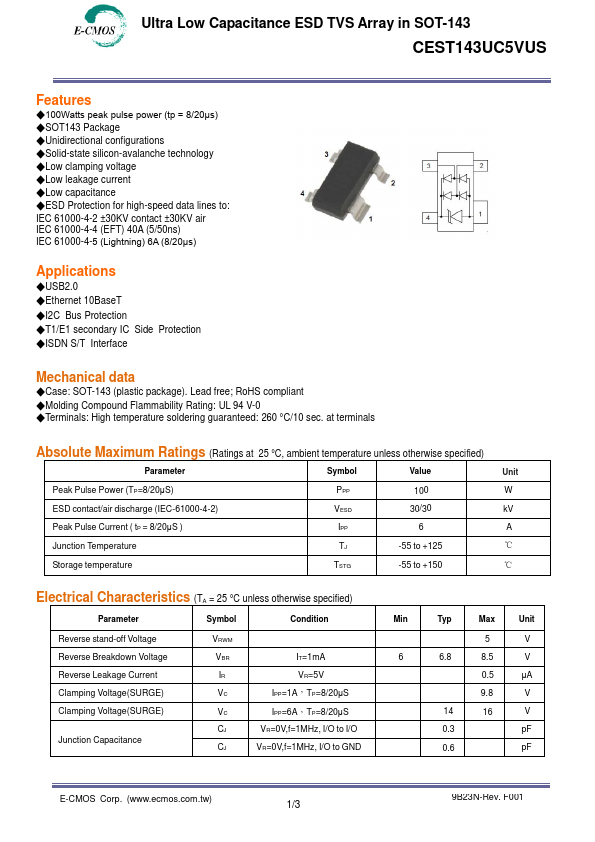

CEST143UC5VUS
Features
- 100Watts peak pulse power (tp = 8/20μs)
- SOT143 Package
- Unidirectional configurations
- Solid-state silicon-avalanche technology
- Low clamping voltage
- Low leakage current
- Low capacitance
- ESD Protection for high-speed data lines to: IEC 61000-4-2 ±30KV contact ±30KV air IEC 61000-4-4 (EFT) 40A (5/50ns) IEC 61000-4-5 (Lightning) 6A (8/20μs)
Applications
- USB2.0
- Ethernet 10Base T
- I2C Bus Protection
- T1/E1 secondary IC Side Protection
- ISDN S/T Interface
Mechanical data
- Case: SOT-143 (plastic package). Lead free; Ro HS pliant
- Molding pound Flammability Rating: UL 94 V-0
- Terminals: High temperature soldering guaranteed: 260 °C/10 sec. at terminals
Absolute Maximum Ratings (Ratings at 25 °C, ambient temperature unless otherwise specified)
Parameter
Symbol
Value
Unit
Peak Pulse Power (TP=8/20μS)
ESD contact/air discharge (IEC-61000-4-2)
VESD
30/30 k V
Peak Pulse Current ( t P = 8/20μS )
Junction Temperature
-55 to +125
℃
Storage...
