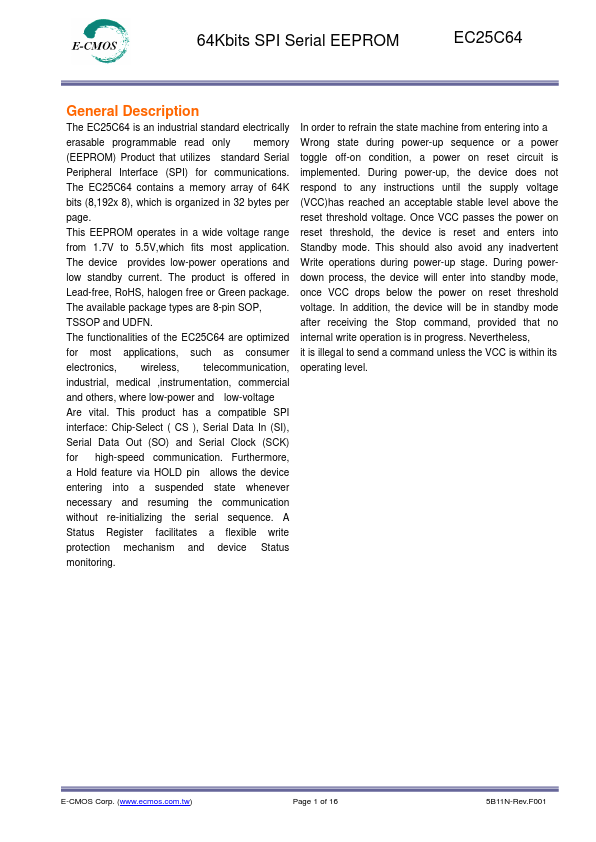

EC25C64 Description
The EC25C64 is an industrial standard electrically erasable programmable read only memory (EEPROM) Product that utilizes standard Serial Peripheral Interface (SPI) for munications. The EC25C64 contains a memory array of 64K bits (8,192x 8), which is organized in 32 bytes per page. This EEPROM operates in a wide voltage range from 1.7V to 5.5V,which fits most application.

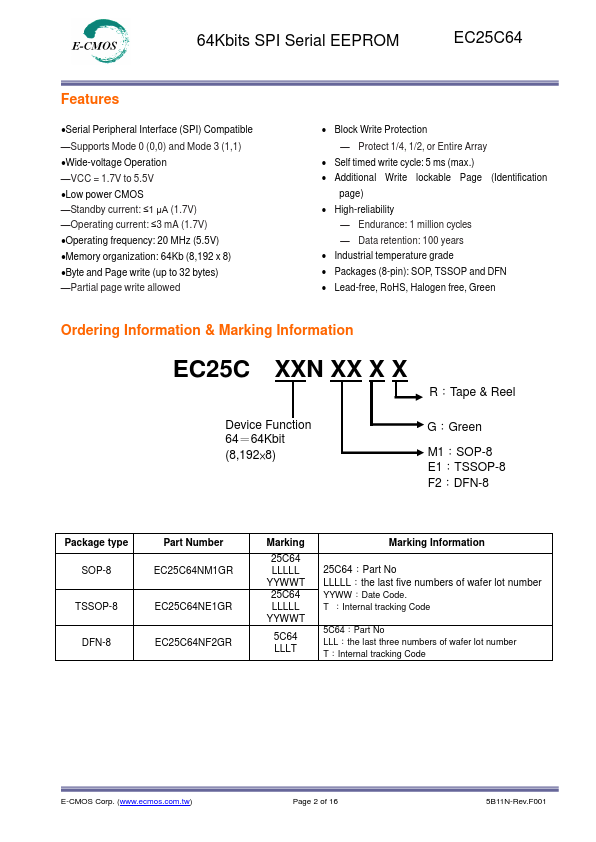

EC25C64 Key Features
- Block Write Protection
- Protect 1/4, 1/2, or Entire Array
- Self timed write cycle: 5 ms (max.)
- Additional Write lockable Page (Identification
- High-reliability
- Endurance: 1 million cycles
- Data retention: 100 years
- Industrial temperature grade
- Packages (8-pin): SOP, TSSOP and DFN
- Lead-free, RoHS, Halogen free, Green
