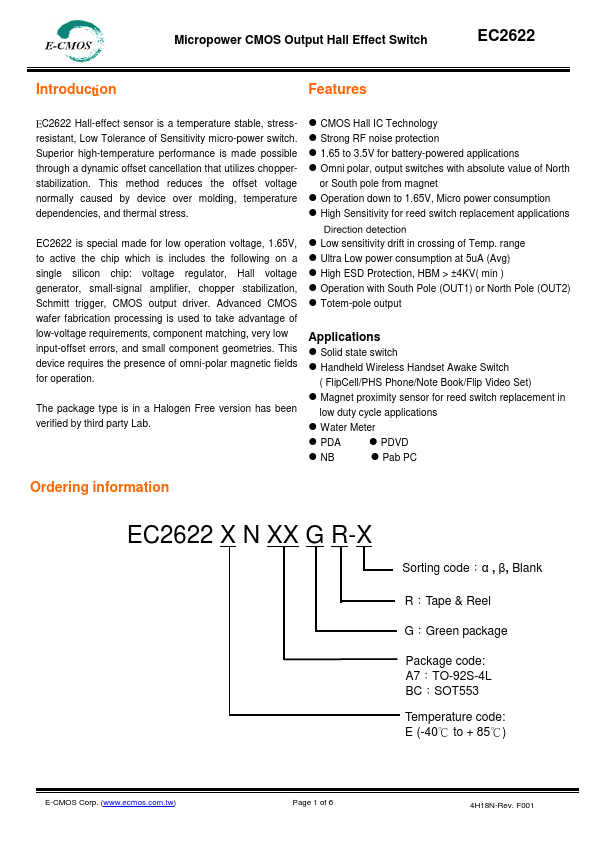

E-CMOS EC2622
EC2622 is special made for low operation voltage, 1.65V, to active the chip which is includes the following on a single silicon chip: voltage regulator, Hall voltage generator, small-signal amplifier, chopper stabilization, Schmitt trigger, CMOS output driver. This device requires the presence of omni-polar magnetic fields for operation. The package type is in a Halogen Free version has been verified by third party Lab.| Part No. | EC2622 |
|---|---|
| Datasheet | EC2622 Download |
| Manufacturer |  E-CMOS |
| Description | Micropower CMOS Output Hall Effect Switch |
| Buy | Stock & Price |
FEATURES
● CMOS Hall IC Technology
● Strong RF noise protection
● 1.65 to 3.5V for battery-powered applications
● Omni polar, output switches with absolute value of North or South pole from magnet
● Operation down to 1.65V, Micro power consumption
● High Sensitivity for reed switch replacement applications Advanced CMOS wafer fabrication processing is used to take advantage of low-voltage requirements, component matching, very low input-offset errors, and small component geometries.
● Low sensitivity drift in crossing of Temp. range
● Ultra Low power consumption at 5uA (Avg)
● High ESD Protection, HBM > ±4KV( min )
● Operation with South Pole (OUT1) or North Pole (OUT2)
● Totem-pole output
APPLICATIONS
● Solid state switch● Handheld Wireless Handset Awake Switch ( FlipCell/PHS Phone/Note Book/Flip Video Set)
● Magnet proximity sensor for reed switch replacement in low duty cycle applications
● Water Meter
● PDA
● PDVD
● NB
● Pab PC Ordering information EC2622 X N XX G R-X Sorting co...
