EC3292B - 18V/2A High Efficiency Synchronous Rectified Step-Down DC/DC Converter

Features

  • The EC3292B is a high efficiency synchronous step-down DC/DC converter series with 2A continuous output current supplied. Included on the substrate with the features listed is a high performance trans-conductance error amplifier that provides tight voltage regulation and accuracy under transient conditions. A built-in Under Voltage Lockout (UVLO) circuit is provided to prevent start-up until the input voltage reaches to 4.5V. In addition, it features overcurrent protection and thermal shutdown.

📥 Download Datasheet

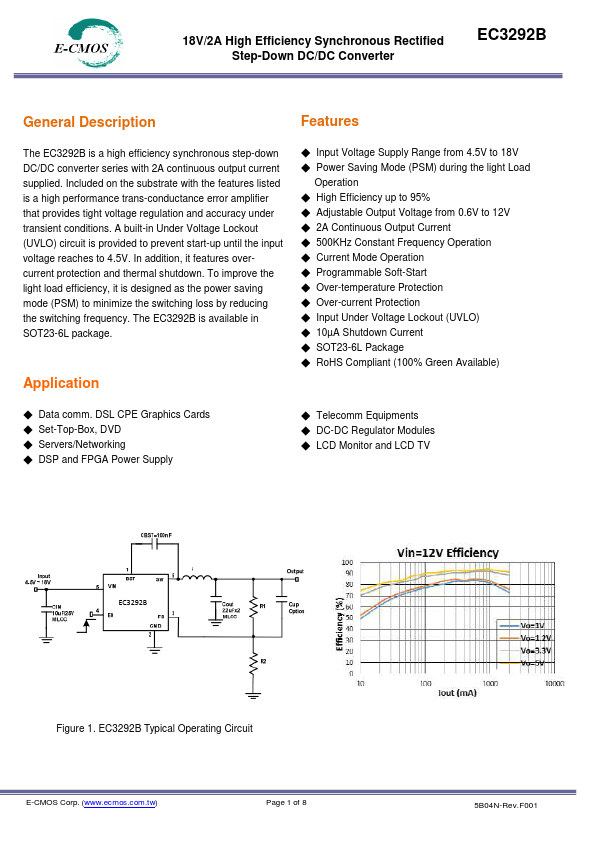

Datasheet preview – EC3292B

Datasheet Details

Part number EC3292B
Manufacturer E-CMOS
File Size 371.13 KB
Description 18V/2A High Efficiency Synchronous Rectified Step-Down DC/DC Converter
Datasheet download datasheet EC3292B Datasheet

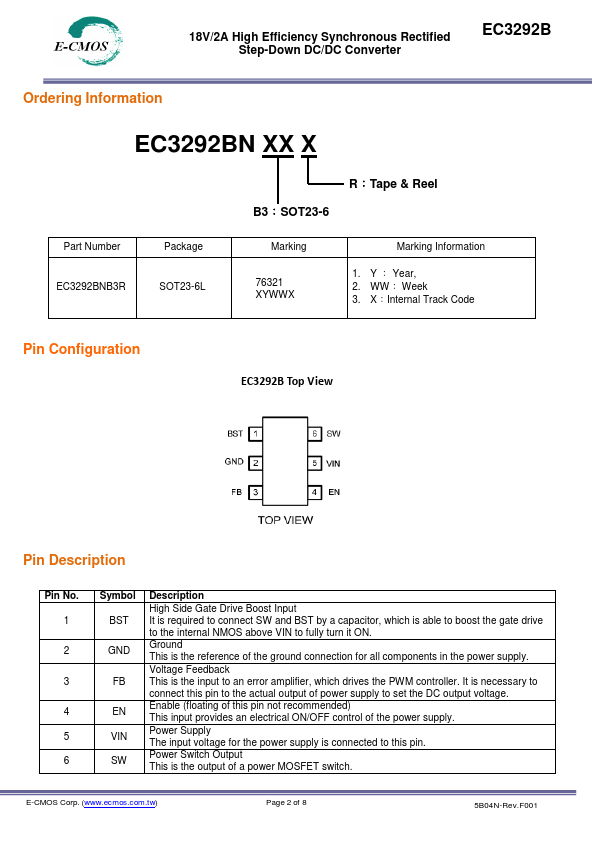

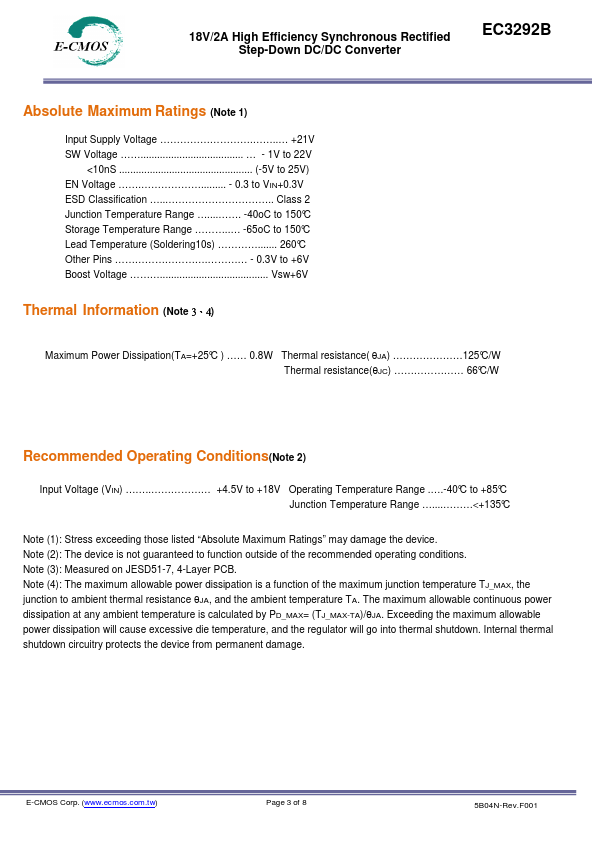

Additional preview pages of the EC3292B datasheet.

📁 Similar Datasheet

  • EC3201C - NPN Epitaxial Planar Silicon Transistors (SANYO)
  • EC30HA03L - Schottky Barrier Diode (Kyocera)
  • EC30HA03L - SBD (Nihon Inter Electronics)
  • EC30HA04 - Schottky Barrier Diode (Kyocera)
  • EC30HA04 - SBD (Nihon Inter Electronics)
  • EC30LA02 - SBD (Nihon Inter Electronics)
  • EC30LB02 - SBD (Nihon Inter Electronics)
  • EC30QSA035 - Schottky Barrier Diode (Kyocera)
  • EC30QSA035 - SBD (Nihon Inter Electronics)
  • EC30QSA045 - Schottky Barrier Diode (Kyocera)
Other Datasheets by E-CMOS
  • EC3228 - High-Performance PWM Controller
  • EC3581-D - 2-in-1 PNP Srial Mouse Controller
  • EC3648 - PS2 KEYBOARD CONTROLLER

Full PDF Text Transcription

Click to expand full text
18V/2A High Efficiency Synchronous Rectified Step-Down DC/DC Converter EC3292B General Description Features The EC3292B is a high efficiency synchronous step-down DC/DC converter series with 2A continuous output current supplied. Included on the substrate with the features listed is a high performance trans-conductance error amplifier that provides tight voltage regulation and accuracy under transient conditions. A built-in Under Voltage Lockout (UVLO) circuit is provided to prevent start-up until the input voltage reaches to 4.5V. In addition, it features overcurrent protection and thermal shutdown. To improve the light load efficiency, it is designed as the power saving mode (PSM) to minimize the switching loss by reducing the switching frequency.
