EC3651

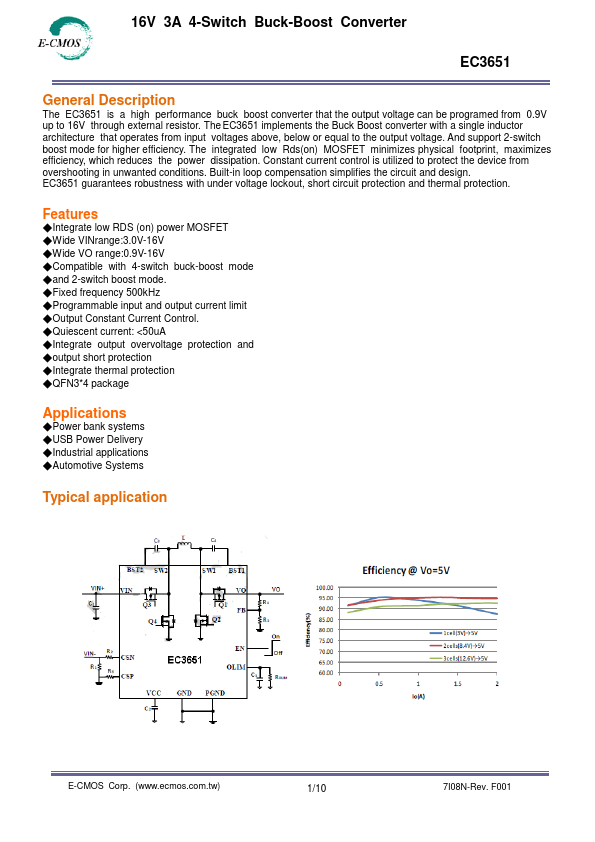

Description
The EC3651 is a high performance buck boost converter that the output voltage can be programed from 0.9V up to 16V through external resistor. The EC3651 implements the Buck Boost converter with a single inductor architecture that operates from input voltages above, below or equal to the output voltage. And support 2-switch boost mode for higher efficiency. The integrated low Rds(on) MOSFET minimizes physical footprint, maximizes efficiency, which reduces the power dissipation. Constant current control is utilized to protect the device from overshooting in unwanted conditions. Built-in loop pensation simplifies the circuit and design. EC3651 guarantees robustness with under voltage lockout, short circuit protection and thermal protection.
Features
- Integrate low RDS (on) power MOSFET
- Wide VINrange:3.0V-16V
- Wide VO range:0.9V-16V
- patible with 4-switch buck-boost mode
- and 2-switch boost mode.
- Fixed frequency 500k Hz
- Programmable input and output current limit
- Output...
