EC4304 - 1A High Brightness LED Driver

Datasheet Summary

Features

  • The EC4304 is a high-efficiency continuous mode inductive step-down converter which drives N-channel MOSFET and it is designed for driving single or multiple series connected LEDs from a voltage source higher than the LED voltage. It operates from input supply between 7V and 40V and provides and externally adjustable output current to 1A which is depending on supply voltage and external components. This EC4304 includes the output switch and high-side output current sensing circuit, which uses a.

📥 Download Datasheet

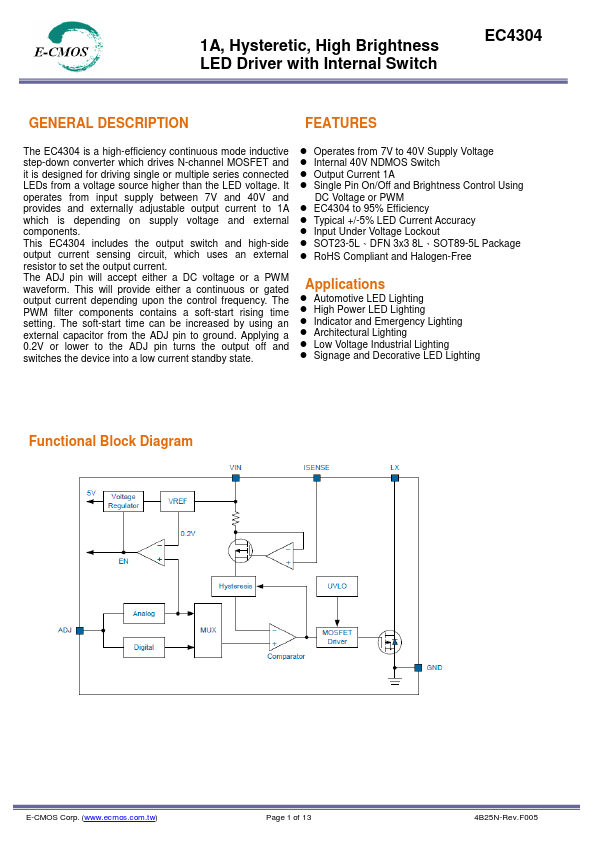

Datasheet preview – EC4304

Datasheet Details

Part number EC4304
Manufacturer E-CMOS
File Size 575.58 KB
Description 1A High Brightness LED Driver
Datasheet download datasheet EC4304 Datasheet

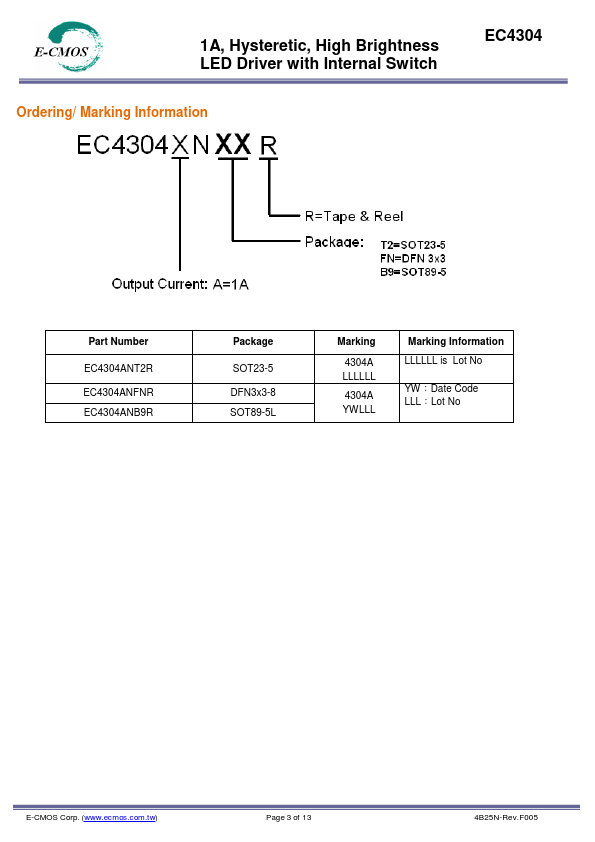

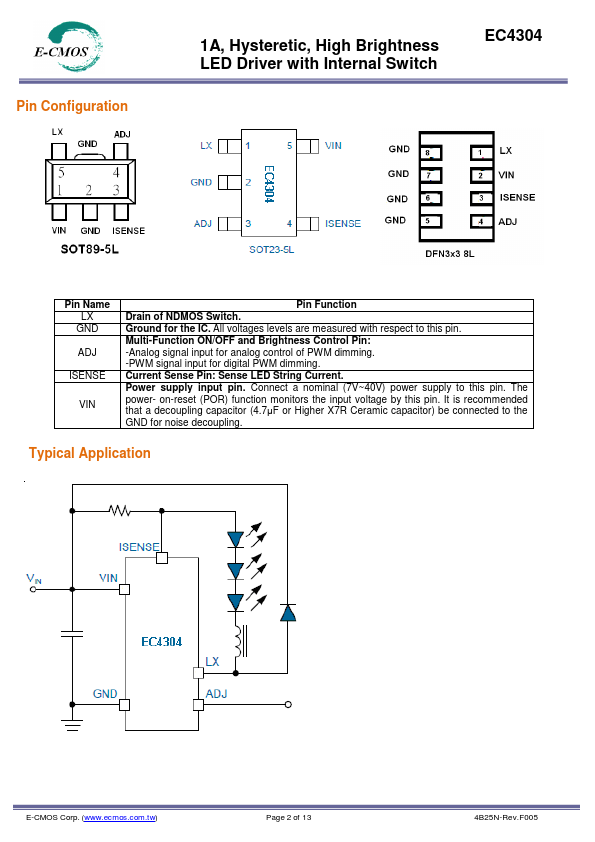

Additional preview pages of the EC4304 datasheet.

📁 Similar Datasheet

  • EC4301C - PicomosFET Series (Sanyo)
  • EC4302C - PicomosFET Series (Sanyo)
  • EC4303C - PicomosFET Series (Sanyo)
  • EC4307KF - P-Channel MOSFET (Sanyo Semicon Device)
  • EC4309C - P-Channel Silicon MOSFET (Sanyo Semicon Device)
  • EC4-10-ETO - Industrial Ethylene Oxide Electrochemical Sensor (SGX)
  • EC4-20-NO2 - Nitrogen Dioxide Electrochemical Sensor (SGX)
  • EC410 - Electrochemical Sensor (SGX)
  • EC4201KF - NPN Epitaxial Planar Silicon Transistor (Sanyo Semicon Device)
  • EC4401C - N-Channel MOSFET (Sanyo Semicon Device)
Other Datasheets by E-CMOS
  • EC4220 - High power factor linear constant current LED driver
  • EC48324 - LOW POWER QUAD OPERATIONAL AMPLIFIERS
  • EC49022 - 1A Single Cell Linear Lithium Battery Charger
  • EC49220 - 600mA CMOS Ultra LDO Voltage Regulator
  • EC49222 - Dual Channel LDO Regulator

Full PDF Text Transcription

Click to expand full text
1A, Hysteretic, High Brightness LED Driver with Internal Switch EC4304 GENERAL DESCRIPTION FEATURES The EC4304 is a high-efficiency continuous mode inductive step-down converter which drives N-channel MOSFET and it is designed for driving single or multiple series connected LEDs from a voltage source higher than the LED voltage. It operates from input supply between 7V and 40V and provides and externally adjustable output current to 1A which is depending on supply voltage and external components. This EC4304 includes the output switch and high-side output current sensing circuit, which uses an external resistor to set the output current. The ADJ pin will accept either a DC voltage or a PWM waveform.
