EC49022 - 1A Single Cell Linear Lithium Battery Charger

Datasheet Summary

Description

The EC49022 is a complete constant - current & constant-voltage linear charger for single cell lithium-ion batteries.

Its SOP-8(Exposed PAD) package and low external component count make the EC49022 ideally suited for portable applications.

Features

  • include battery temperature monitor, under voltage lockout, automatic recharge and two status pin to indicate charge termination and the presence of an input voltage.

📥 Download Datasheet

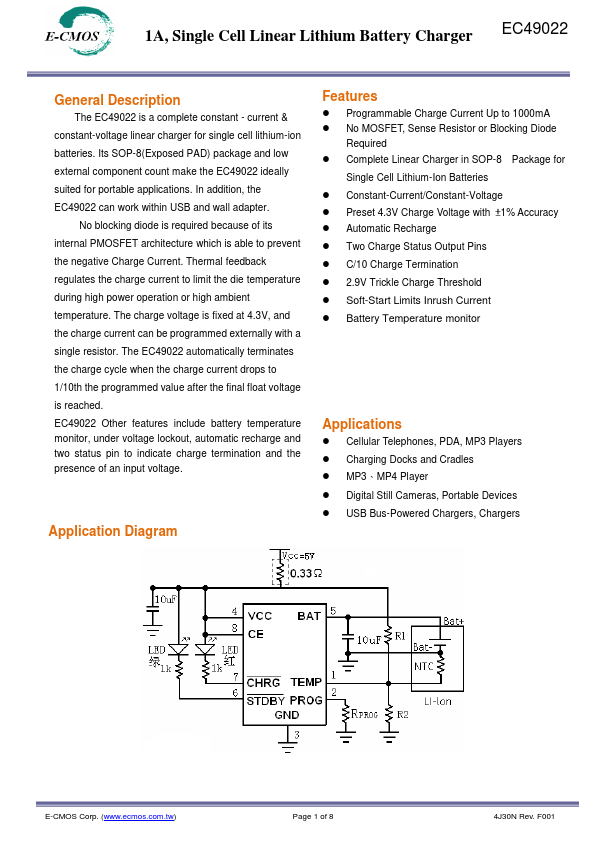

Datasheet preview – EC49022

Datasheet Details

Part number EC49022
Manufacturer E-CMOS
File Size 301.75 KB
Description 1A Single Cell Linear Lithium Battery Charger
Datasheet download datasheet EC49022 Datasheet

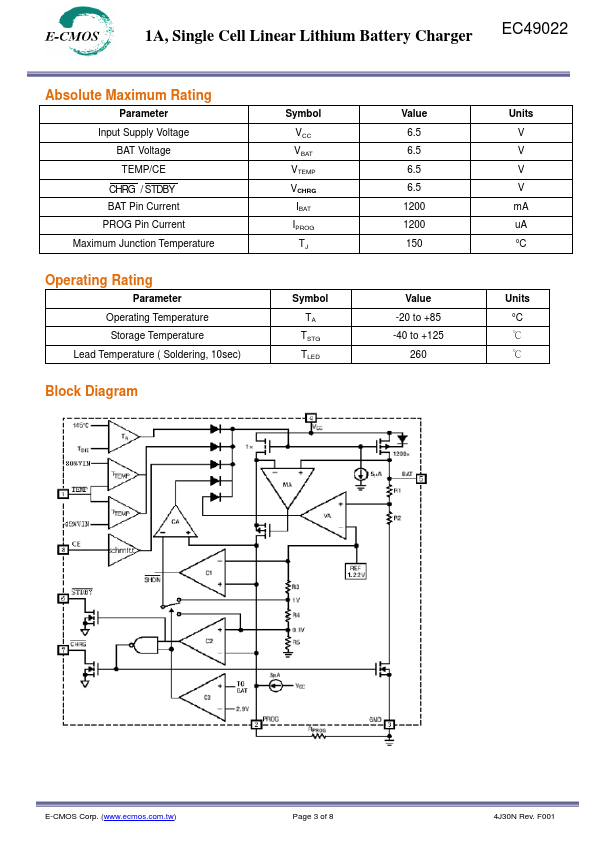

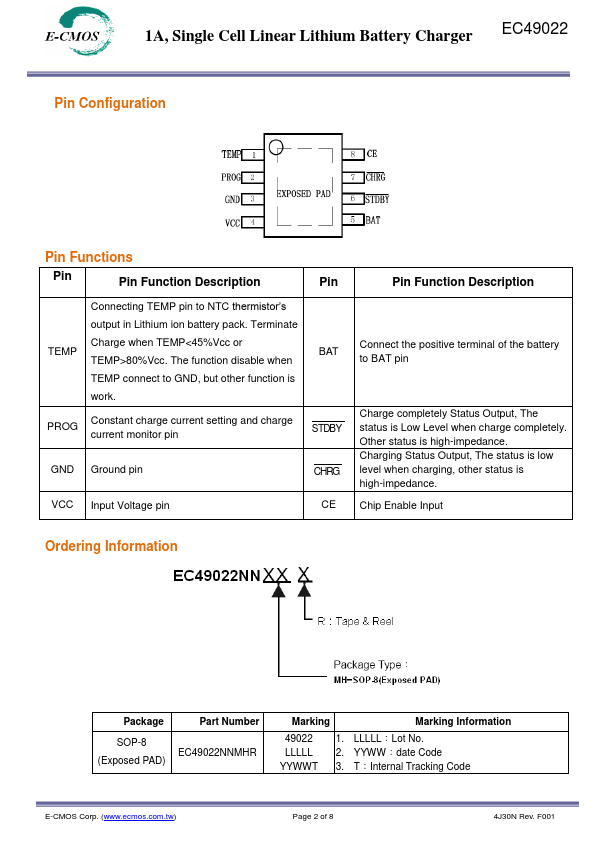

Additional preview pages of the EC49022 datasheet.
