EC5086 datasheet by E-CMOS.
| Part number | EC5086 |
|---|---|
| Datasheet | EC5086-ECMOS.pdf |
| File Size | 643.74 KB |
| Manufacturer | E-CMOS |
| Description | Quiescent Current Synchronous Boost Controller |
|
|

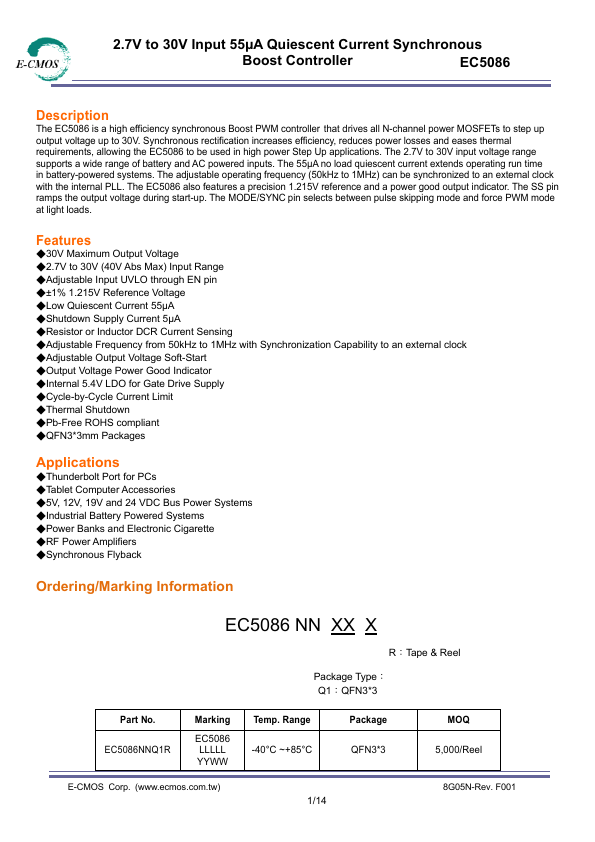

The EC5086 is a high efficiency synchronous Boost PWM controller that drives all N-channel power MOSFETs to step up output voltage up to 30V. Synchronous rectification increases efficiency, reduces power losses and eases thermal requirements, allowing the EC5086 to be used in high power Step Up applications. The 2.7V to 30V input voltage range supports a wide range of battery and AC powered inputs.
