E-CMOS EC5755
The EC5755 is a single supply, low power CMOS operational amplifier; these amplifiers offer bandwidth of 250kHz, rail-to-rail inputs and outputs, and single-supply operation from 2.2V to 5.5V. The EC5755 is available in SOT23-5 and SOP8 packages.. The extended temperature range of -40 ℃ to +125℃ over all supply voltages offers additional design flexibility.| Part No. | EC5755 |
|---|---|
| Datasheet | EC5755 Download |
| Manufacturer |  E-CMOS |
| Description | Rail-to-Rail Operational Amplifier |
| Buy | Stock & Price |
GENERAL DESCRIPTION
FEATURES
Typical low quiescent supply current of 7μA in single operational amplifiers within one chip and very low input bias current of 10pA make the devices an ideal choice for low offset, low power consumption and high impedance applications.● Single-Supply Operation from +2.2V ~ +5.5V
● Rail-to-Rail Input / Output
● Gain-Bandwidth Product: 250kHz (Typ.)
● Low Input Bias Current: 10pA (Typ.)
● Low Offset Voltage: 5.5mV (Max.)
● Quiescent Current: 7μA per Amplifier (Typ.)
● Operating Temperature: -40°C ~ +125°C
● Available in SOT23-5 and SOP8 Packages
APPLICATIONS
● Portable Equipment● Mobile Communications
● Smoke Detector
● Sensor Interface Pin Assignments
● Handheld Test Equipment
● Medical Instrumentation

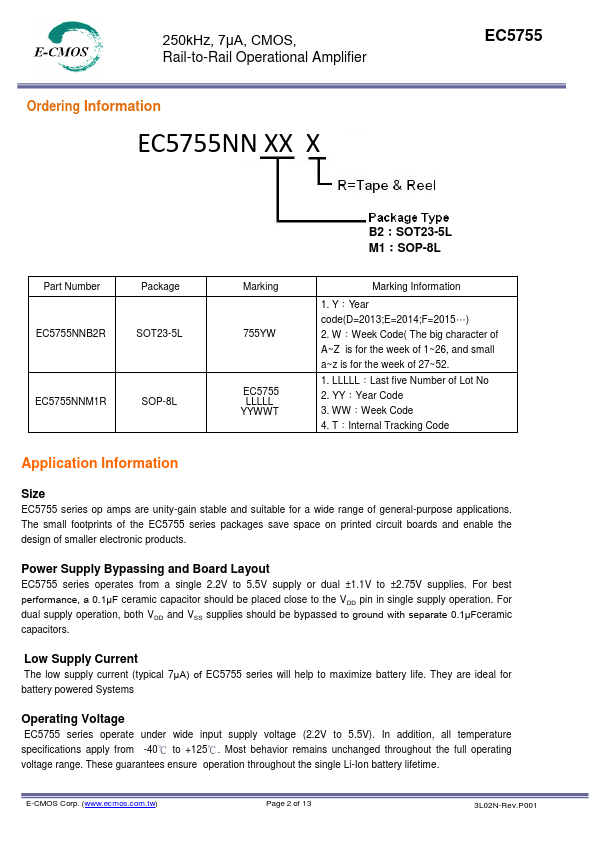

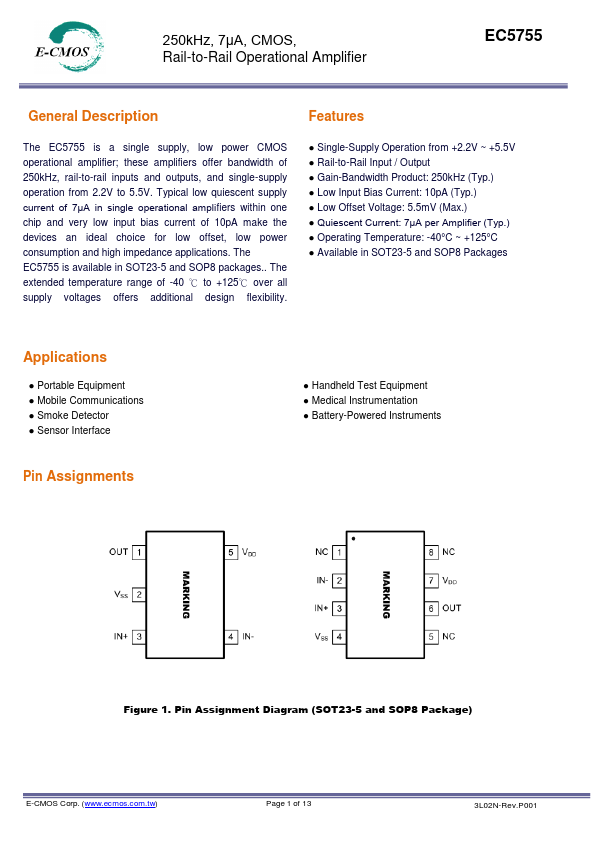

● Battery-Powered Instruments Figure 1. Pin Assignment Diagram (SOT23-5 and SOP8 Package) E-CMOS Corp. ( Page 1 of 13 3L02N-Rev.P001 250kHz, 7μA, CMOS, Rail-to-Rail Operational Amplifier Amplifier Ordering Information EC5755NN XX X EC5755 B2：SOT23-5L M1：SOP-8L Part Number Package EC5755NNB2R SOT23-5L EC5755NNM1R SOP-8L Marking 755YW EC5755 LLLLL YYWWT Marking Information 1.
