EC8518 Datasheet PDF - E-CMOS 35V 200mA Low Dropout LDO Specs

EC8518 - 35V 200mA Low Dropout LDO

Datasheet Summary

Description

EC85XX series is designed for power-sensitive applications.

It includes a precision and high voltage input stage, an ultralow-power bias current branch, and results in a ultra-low-power and low-dropout linear regulator.

The EC85XX operates from an input voltage of VOUT+1V to 35V, consumes only 2.

Features

include shortcircuit protection and thermal shutdown. Feature.
Ultra Low Quiescent Current: 2.6µA(Typ. ).
Wide Operating Voltage: VOUT+1V to 35V.
High output current: ≥200mA.
System startup with no overshoot.
Short circuit protection is designed with no overshoot.
Low Dropout Voltage.

Datasheet Details

Part number	EC8518
Manufacturer	E-CMOS
File Size	209.11 KB
Description	35V 200mA Low Dropout LDO
Datasheet	EC8518 Datasheet

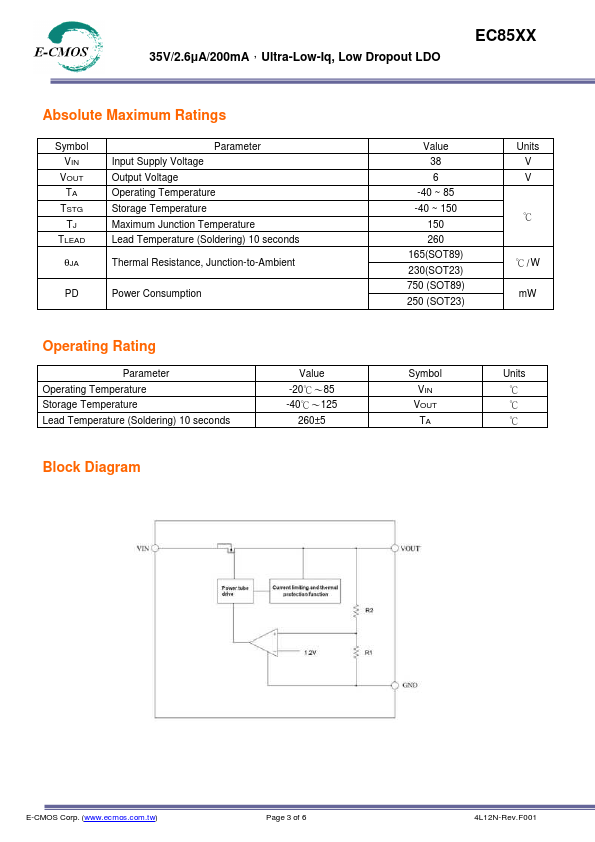

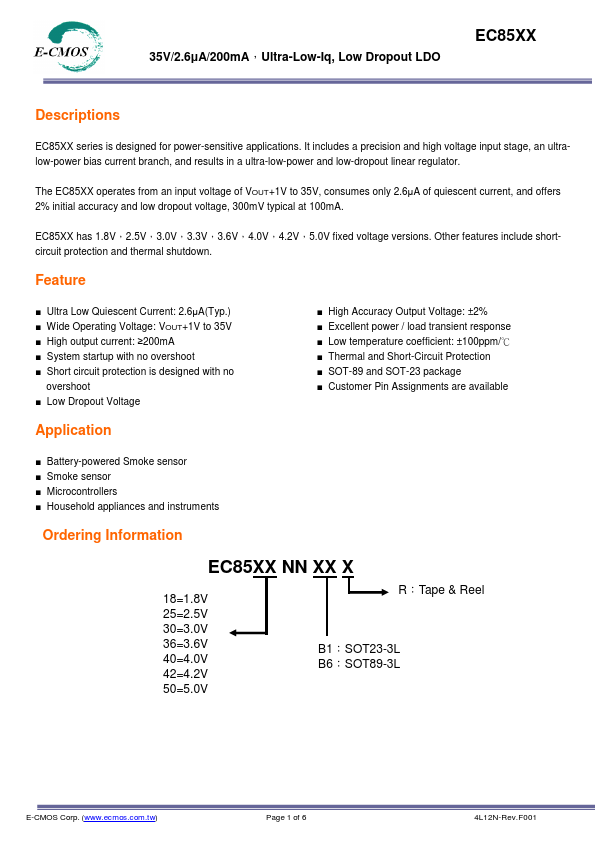

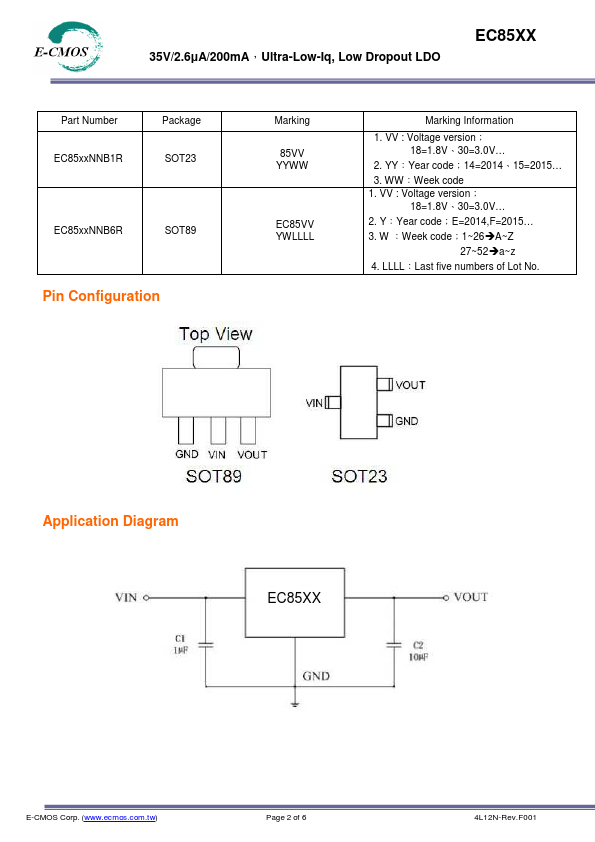

Additional preview pages of the EC8518 datasheet.

📁 Similar Datasheet

EC80 - Triode (LA RADIOTECHNIQUE)

EC80 - UHF Triode (Philips)

EC80 - UHF Triode (ETC)

EC80 - S.Q. Tube (Philips)

EC8010 - UHF Power Triode (TELEFUNKEN)

EC8010 - S.Q. Tube (Philips)

EC8020 - Power Triode (TELEFUNKEN)

EC806S - UHF Triode (TELEFUNKEN)

EC81 - Triode Oscillatrice (LA RADIOTECHNIQUE)

EC81 - UHF Oscillator Triode (Philips)

Full PDF Text Transcription

Click to expand full text

35V/2.6µA/200mA，Ultra-Low-Iq, Low Dropout LDO EC85XX Descriptions EC85XX series is designed for power-sensitive applications. It includes a precision and high voltage input stage, an ultralow-power bias current branch, and results in a ultra-low-power and low-dropout linear regulator. The EC85XX operates from an input voltage of VOUT+1V to 35V, consumes only 2.6µA of quiescent current, and offers 2% initial accuracy and low dropout voltage, 300mV typical at 100mA. EC85XX has 1.8V 2.5V 3.0V 3.3V 3.6V 4.0V 4.2V 5.0V fixed voltage versions. Other features include shortcircuit protection and thermal shutdown. Feature ■ Ultra Low Quiescent Current: 2.6µA(Typ.
