ABSOLUTE MAXIMUM RATINGS

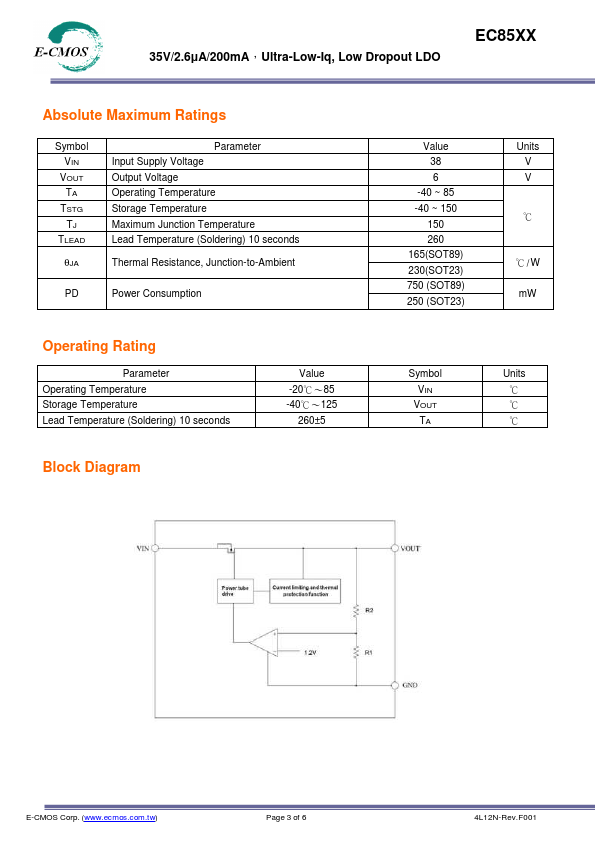

Symbol VIN VOUT TA TSTG TJ TLEAD θJA Parameter Input Supply Voltage Output Voltage Operating Temperature Storage Temperature Maximum Junction Temperature Lead Temperature (Soldering) 10 seconds Thermal Resistance, Junction-to-Ambient PD Power Consumption Operating Rating Parameter Operating Temperature Storage Temperature Lead Temperature (Soldering) 10 seconds Block Diagram Value -20 85 -40 125 260±5 Value 38 6 -40 ~ 85 -40 ~ 150 150 260 165(SOT89) 230(SOT23) 750 (SOT89) 250 (SOT23) Units V V ℃ /W mW Symbol VIN VOUT TA Units ℃ ℃ ℃ E-CMOS Corp. ( Page 3 of 6 4L12N-Rev.F001 35V/2.6µA/200mA，Ultra-Low-Iq, Low Dropout LDO EC85XX ELECTRICAL CHARACTERISTICS
（VIN=VOUT+ 1V ； Tj=25 unless otherwise noted.） Symbol Parameter Conditions VIN Input Supply Voltage VOUT Output Voltage Accuracy IOUT=10mA IQ Quiescent Current IOUT Output Current IOUT=10mA ∆VOUT= - VOUT *2% VDROP Dropout Voltage IOUT=100mA ∆VOUT= - VOUT *2% IOUT=200mA ∆VOUT= - VOUT *2% VLR Load Regulation 1mA ≤ I...
