EC8540 - 35V 200mA Low Dropout LDO

This page provides the datasheet information for the EC8540, a member of the EC8518 35V 200mA Low Dropout LDO family.

Datasheet Summary

Description

EC85XX series is designed for power-sensitive applications.

It includes a precision and high voltage input stage, an ultralow-power bias current branch, and results in a ultra-low-power and low-dropout linear regulator.

The EC85XX operates from an input voltage of VOUT+1V to 35V, consumes only 2.

Features

  • include shortcircuit protection and thermal shutdown. Feature.
  • Ultra Low Quiescent Current: 2.6µA(Typ. ).
  • Wide Operating Voltage: VOUT+1V to 35V.
  • High output current: ≥200mA.
  • System startup with no overshoot.
  • Short circuit protection is designed with no overshoot.
  • Low Dropout Voltage.

📥 Download Datasheet

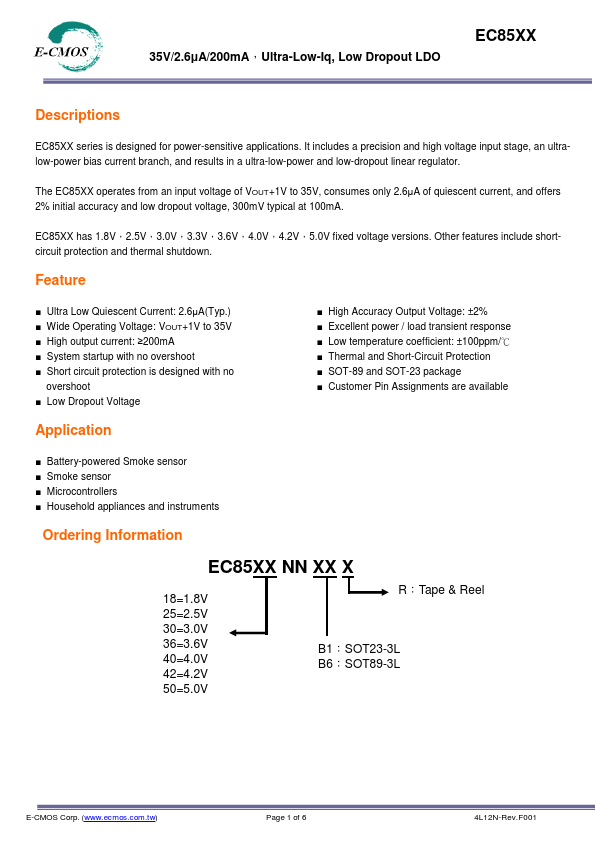

Datasheet preview – EC8540

Datasheet Details

Part number EC8540
Manufacturer E-CMOS
File Size 209.11 KB
Description 35V 200mA Low Dropout LDO
Datasheet download datasheet EC8540 Datasheet

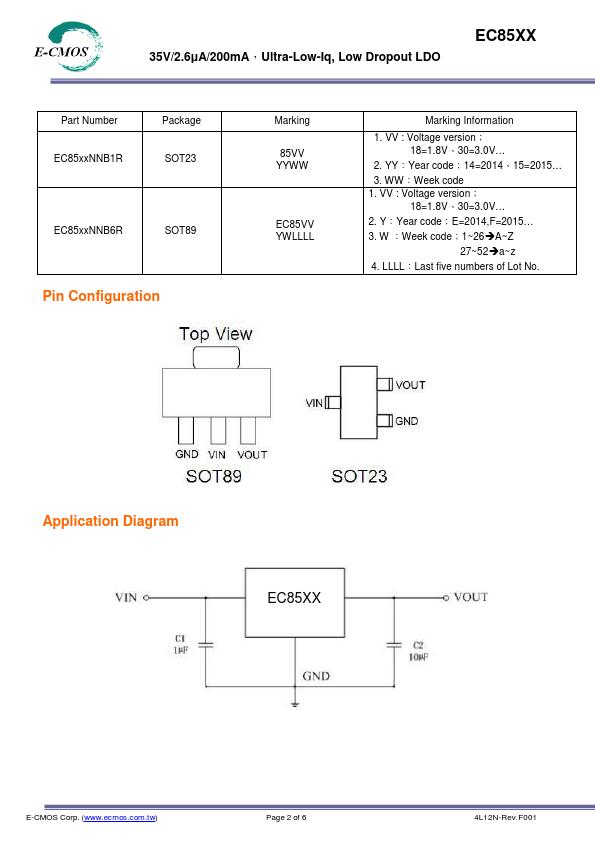

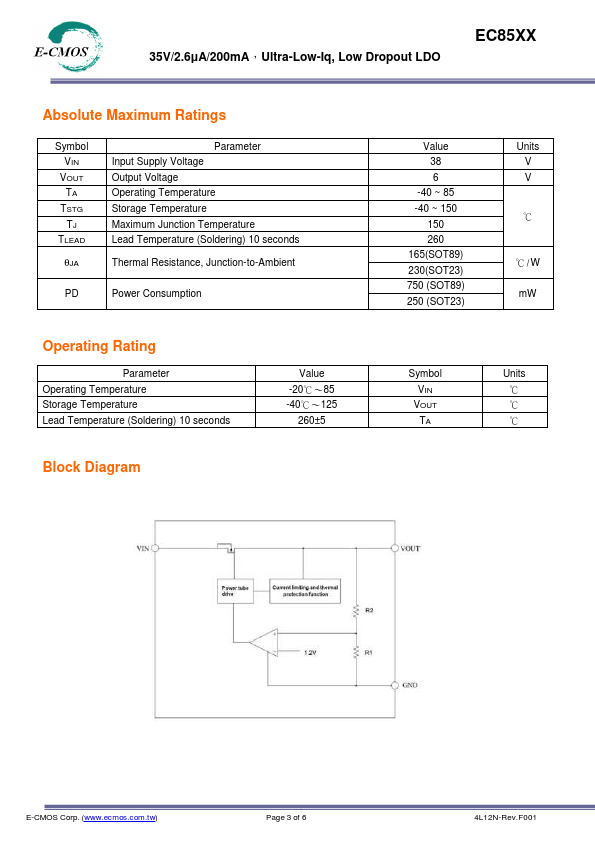

Additional preview pages of the EC8540 datasheet.
