EC9219 - TFT-LCD DC-DC Converters

Datasheet Summary

Description

The EC9219 include a high-performance step-up regulator, and high-current operational amplifiers for active-matrix thin-film transistor (TFT) liquid-crystal displays (LCDs).

The step-up DC-DC converter provides the regulated supply voltage for the panel source driver ICs.

Features

  • z 2.6V to 5.5V Input Supply Range z 1.2MHz or 640KHZ Current-Mode Step-Up Regulator z Fast Transient Response to Pulsed Load z High-Accuracy Output Voltage ( 2% ) z Built-In 18V, 1.6A, 0.16Ω N-Channel MOSFET z High Efficiency (90%) z High-Performance Operational Amplifiers z 17V/μs Slew Rate z 12MHz, -3dB Bandwidth z Rail-to-Rail Inputs/Outputs z Thermal-Overload Protection.

📥 Download Datasheet

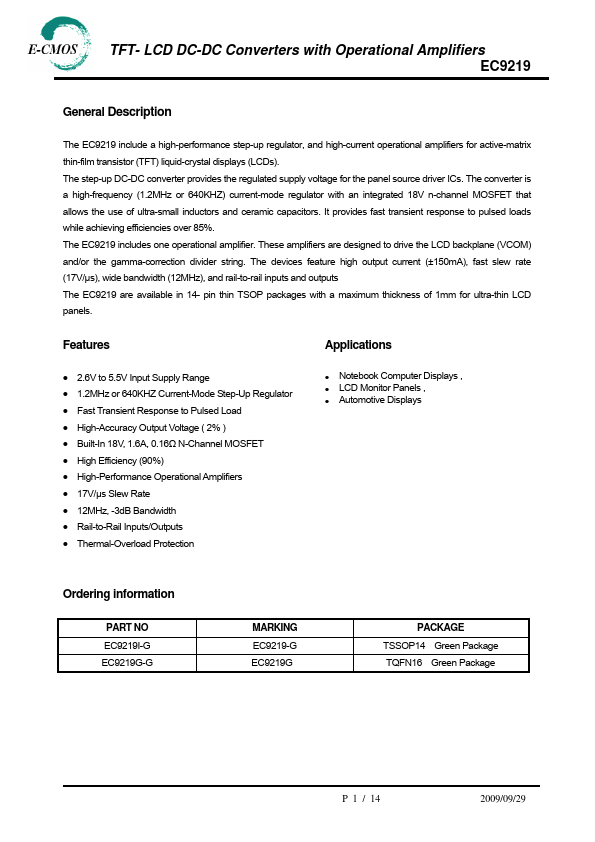

Datasheet preview – EC9219

Datasheet Details

Part number EC9219
Manufacturer E-CMOS
File Size 371.83 KB
Description TFT-LCD DC-DC Converters
Datasheet download datasheet EC9219 Datasheet

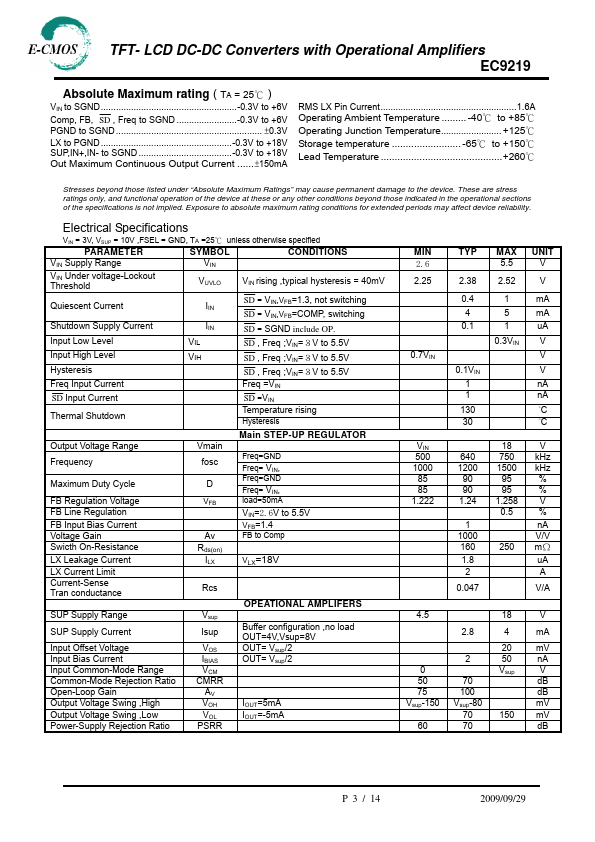

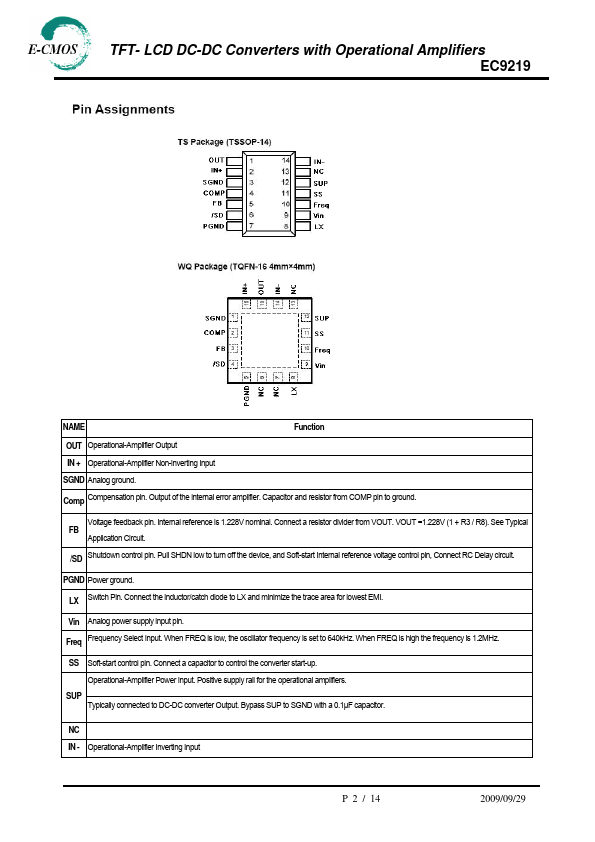

Additional preview pages of the EC9219 datasheet.

📁 Similar Datasheet

  • EC92 - Steile Triode (RFT)
  • EC92 - R.F. Triode 1956 (Philips)
  • EC92 - Triode (LA RADIOTECHNIQUE)
  • EC92 - R.F. Triode 1969 (Philips)
  • EC90 - S.Q. Tube (Philips)
  • EC900 - Triode Neutrode (MAZDABELVU)
  • EC900 - VHF Triode (Philips)
  • EC91 - Miniature Grounded Grid Triode (Mullard)
  • EC91 - S.Q. Tube (Philips)
  • EC91 - Grounded Grid Triode (Philips)
Other Datasheets by E-CMOS
  • EC9202 - 200mA PFM Step-up DC-DC Converter
  • EC9206 - PFM Step-up DC-DC Converter
  • EC9288 - 5V 6A 1.2MHz Synchronous Boost Converter
  • EC9409 - 2A 150KHz PWM Buck DC/DC Converter
  • EC9410 - 2A 380KHZ 20V PWM Buck DC/DC Converter
  • EC9413 - 2A 380KHZ 20V PWM Buck DC/DC Converter
  • EC9483 - 3A 380KHZ 28V PWM Buck DC/DC Converter
  • EC9522T - LI-ION PROTECTION IC

Full PDF Text Transcription

Click to expand full text
TFT- LCD DC-DC Converters with Operational Amplifiers EC9219 General Description The EC9219 include a high-performance step-up regulator, and high-current operational amplifiers for active-matrix thin-film transistor (TFT) liquid-crystal displays (LCDs). The step-up DC-DC converter provides the regulated supply voltage for the panel source driver ICs. The converter is a high-frequency (1.2MHz or 640KHZ) current-mode regulator with an integrated 18V n-channel MOSFET that allows the use of ultra-small inductors and ceramic capacitors. It provides fast transient response to pulsed loads while achieving efficiencies over 85%. The EC9219 includes one operational amplifier. These amplifiers are designed to drive the LCD backplane (VCOM) and/or the gamma-correction divider string.
