EC95808 - Ultra-Low Quiescent Current Voltage Detector

Datasheet Summary

Description

The EC95808 series are highly accurate, ultra-low current consumption voltage detectors, developed by CMOS process.

Two output forms N-channel open-drain and CMOS output are available.The device is ideal for battery powered portable devices which require low current consumption.

Features

  • Ultra-Low Quiescent Current 1.0 µA (Typ. ).
  • High Accuracy of Detection Voltage ±2%.
  • Hysteresis Width 5% VDET (Typ. ).
  • Detection Voltage 1.6V to 6.0V (0.1V Step).
  • Operating Voltage Range 1.5V to 6.0V.
  • N-ch Open Drain and CMOS Output.
  • SOT23-3L, SC82-4Land SC70-3L Packages.
  • RoHS Compliant and 100% Lead (Pb)-Free and Green (Halogen Free with Commercial Standard).

📥 Download Datasheet

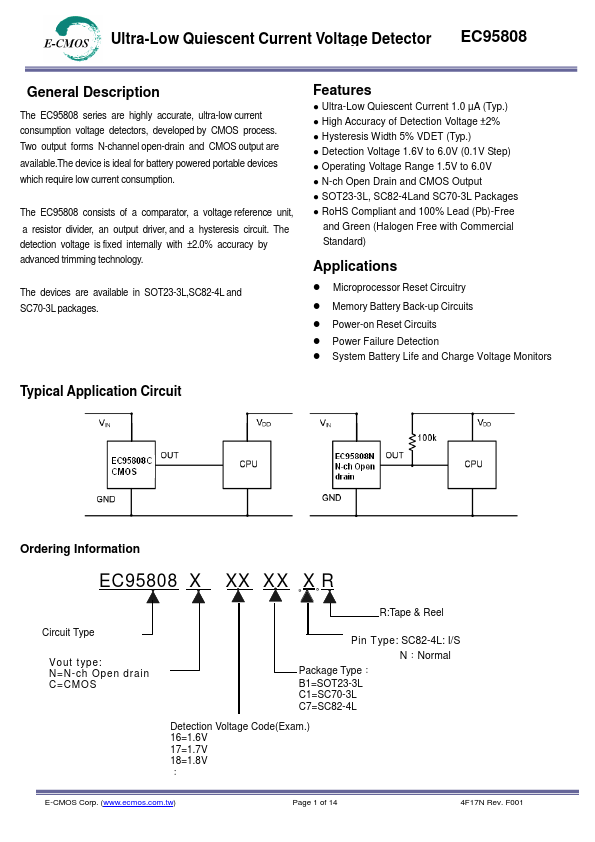

Datasheet preview – EC95808

Datasheet Details

Part number EC95808
Manufacturer E-CMOS
File Size 546.55 KB
Description Ultra-Low Quiescent Current Voltage Detector
Datasheet download datasheet EC95808 Datasheet

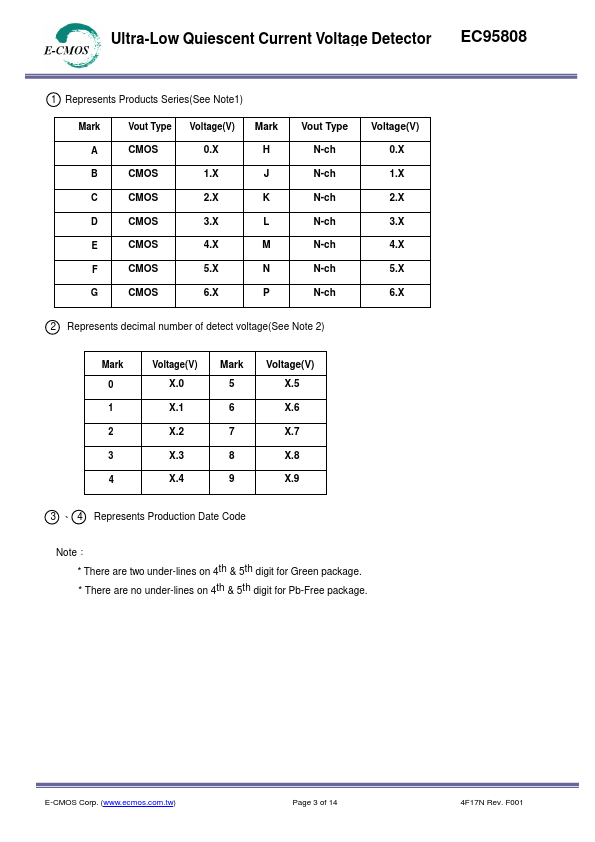

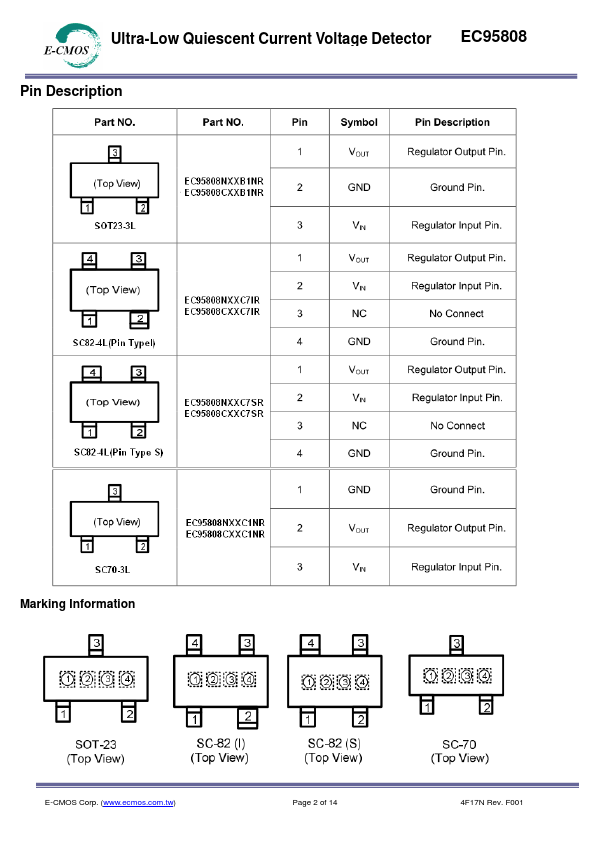

Additional preview pages of the EC95808 datasheet.

📁 Similar Datasheet

  • EC95 - Triode (Philips)
  • EC90 - S.Q. Tube (Philips)
  • EC900 - Triode Neutrode (MAZDABELVU)
  • EC900 - VHF Triode (Philips)
  • EC91 - Miniature Grounded Grid Triode (Mullard)
  • EC91 - S.Q. Tube (Philips)
  • EC91 - Grounded Grid Triode (Philips)
  • EC92 - Steile Triode (RFT)
  • EC92 - R.F. Triode 1956 (Philips)
  • EC92 - Triode (LA RADIOTECHNIQUE)
Other Datasheets by E-CMOS
  • EC9522T - LI-ION PROTECTION IC
  • EC9525 - LI-ION PROTECTION IC
  • EC9202 - 200mA PFM Step-up DC-DC Converter
  • EC9206 - PFM Step-up DC-DC Converter
  • EC9219 - TFT-LCD DC-DC Converters
  • EC9288 - 5V 6A 1.2MHz Synchronous Boost Converter
  • EC9409 - 2A 150KHz PWM Buck DC/DC Converter
  • EC9410 - 2A 380KHZ 20V PWM Buck DC/DC Converter

Full PDF Text Transcription

Click to expand full text
Ultra-Low Quiescent Current Voltage Detector EC95808 General Description The EC95808 series are highly accurate, ultra-low current consumption voltage detectors, developed by CMOS process. Two output forms N-channel open-drain and CMOS output are available.The device is ideal for battery powered portable devices which require low current consumption. The EC95808 consists of a comparator, a voltage reference unit, a resistor divider, an output driver, and a hysteresis circuit. The detection voltage is fixed internally with ±2.0% accuracy by advanced trimming technology. The devices are available in SOT23-3L,SC82-4L and SC70-3L packages. Features ● Ultra-Low Quiescent Current 1.0 µA (Typ.) ● High Accuracy of Detection Voltage ±2% ● Hysteresis Width 5% VDET (Typ.) ● Detection Voltage 1.
