E-CMOS ECL1001
ECL1001 includes a programmable high efficiency BUCK charger, four LED battery indicator, a Torch LED driver, a high efficiency Boost converter, and an overdischarge protector. It is suitable for single-cell lithium -ion / lithium polymer battery charge and discharge management, and can be widely used in power bank, handheld devices, PDA, smart phones and so on.| Part No. | ECL1001 |
|---|---|
| Datasheet | ECL1001 Download |
| Manufacturer |  E-CMOS |
| Description | single-chip Power Bank dedicated IC |
| Buy | Stock & Price |

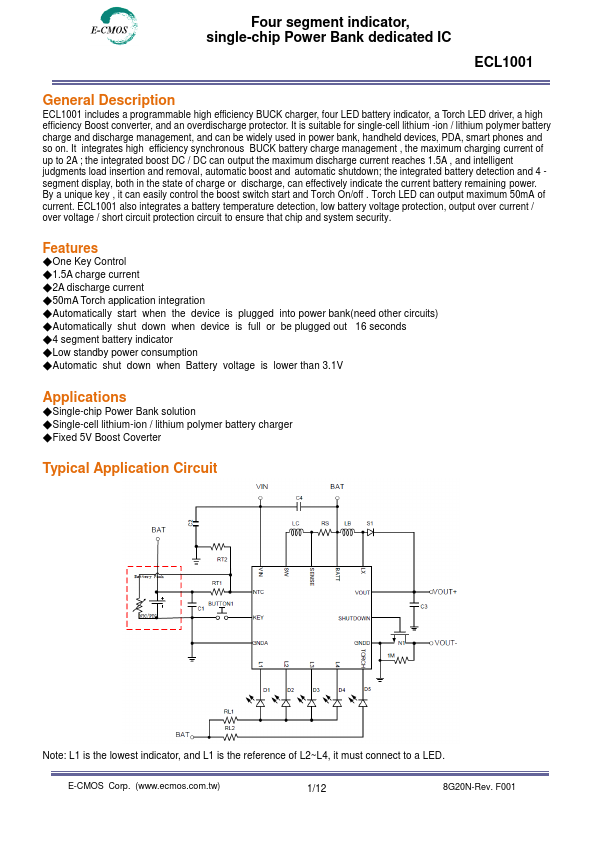

GENERAL DESCRIPTION
It integrates high efficiency synchronous BUCK battery charge management , the maximum charging current of up to 2A ; the integrated boost DC / DC can output the maximum discharge current reaches 1.5A , and intelligent judgments load insertion and removal, automatic boost and automatic shutdown; the integrated battery detection and 4 segment display, both in the state of charge or discharge, can effectively indicate the current battery remaining power. By a unique key , it can easily control the boost switch start and Torch On/off . Torch LED can output maximum 50mA of current. ECL1001 also integrates a battery temperature detection, low battery voltage protection, output over current / over voltage / short circuit protection circuit to ensure that chip and system security.FEATURES
●One Key Control●1.5A charge current
●2A discharge current
●50mA Torch application integration
●Automatically start when the device is plugged into power bank(need other circuits)
●Auto...
