E-CMOS ECT25S80
The ECT25S80 is 8M-bit Serial Peripheral Interface(SPI) Flash memory, and supports the Dual/Quad SPI: Serial Clock, Chip Select, Serial Data I/O0 (SI),I/O1(SO),I/O2(/WP),and I/O3(/HOLD). The Dual I/O data is transferred with speed of 216Mbits/s and the Quad I/O & Quad output data is transferred with speed of 432Mbits/s. The device uses a single low voltage power supply, ranging from 2.7 Volt to 3.6 Volt.| Part No. | ECT25S80 |
|---|---|
| Datasheet | ECT25S80 Download |
| Manufacturer |  E-CMOS |
| Description | 8M BIT SPI NOR FLASH |
| Buy | Stock & Price |

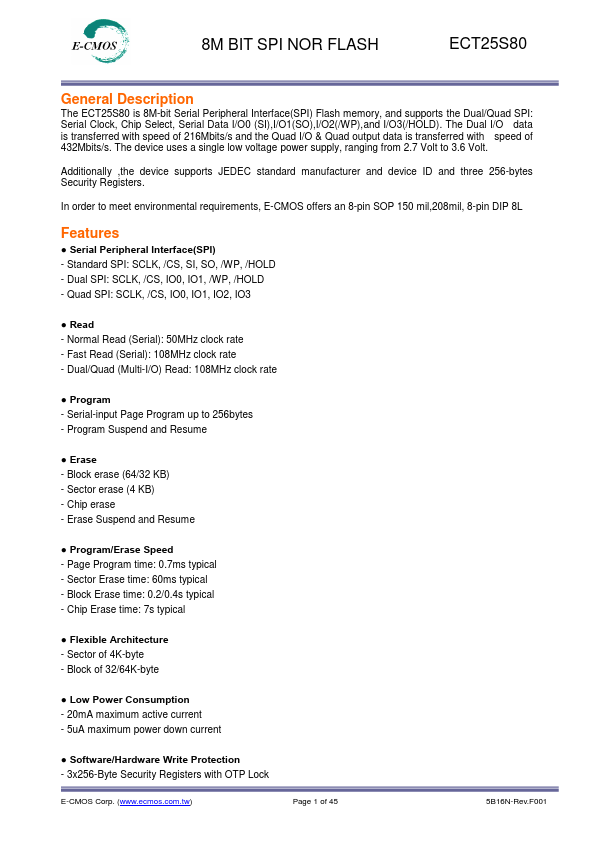

GENERAL DESCRIPTION
Additionally ,the device supports JEDEC standard manufacturer and device ID and three 256-bytes Security Registers. In order to meet environmental requirements, E-CMOS offers an 8-pin SOP 150 mil,208mil, 8-pin DIP 8LFEATURES
● Serial Peripheral Interface(SPI) - Standard SPI: SCLK, /CS, SI, SO, /WP, /HOLD - Dual SPI: SCLK, /CS, IO0, IO1, /WP, /HOLD - Quad SPI: SCLK, /CS, IO0, IO1, IO2, IO3● Read - Normal Read (Serial): 50MHz clock rate - Fast Read (Serial): 108MHz clock rate - Dual/Quad (Multi-I/O) Read: 108MHz clock rate
● Program - Serial-input Page Program up to 256bytes - Program Suspend and Resume
● Erase - Block erase (64/32 KB) - Sector erase (4 KB) - Chip erase - Erase Suspend and Resume
● Program/Erase Speed - Page Program time: 0.7ms typical - Sector Erase time: 60ms typical - Block Erase time: 0.2/0.4s typical - Chip Erase time: 7s typical
● Flexible Architecture - Sector of 4K-byte - Block of 32/64K-byte
● Low Power Consumption - 20mA maximum active cur...
