EFT25C32 Datasheet | E-CMOS

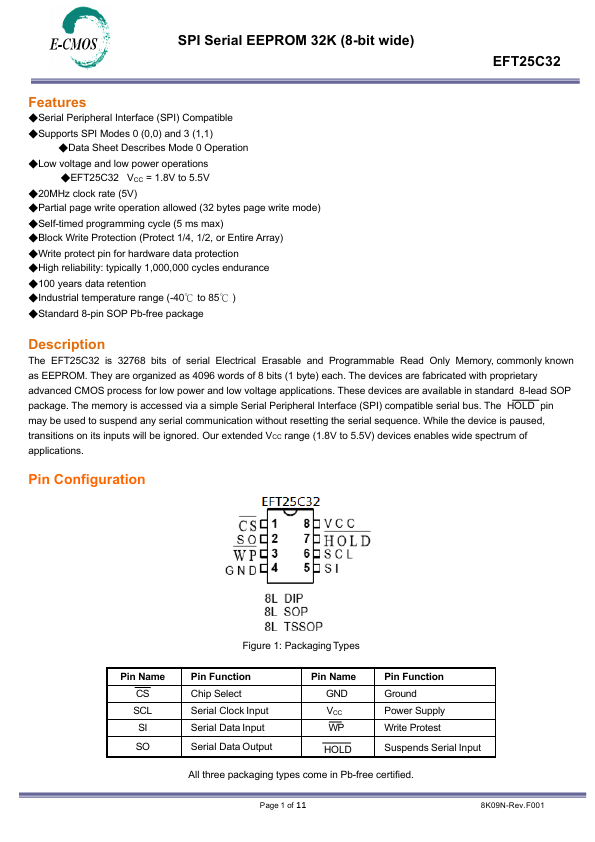

Features - Serial Peripheral Interface (SPI) patible - Supports SPI Modes 0 (0,0) and 3 (1,1) - Data Sheet Describes Mode 0 Operation - Low voltage and low power operations - EFT25C32 VCC = 1.8V to 5.5V - 20MHz clock rate (5V) - Partial page write operation allowed (32 bytes page write mode) - Self-timed programming cycle (5 ms max) - Block Write Protection (Protect 1/4, 1/2, or Entire Array) - Write protect pin for hardware data protection - High reliability: typically 1,000,000 cycles endurance - 100 years data retention - Industrial temperature range (-40℃ to 85℃ ) - Standard 8-pin SOP Pb-free package Description The EFT25C32 is 32768 bits of serial Electrical Erasable and Programmable Read Only Memory, monly known as EEPROM. They are organized as 4096 words of 8 bits (1 byte) each. The devices are fabricated with proprietary advanced CMOS process for low power and low voltage applications. These devices are available in standard 8-lead SOP package. The memory is accessed via a simple Serial Peripheral Interface (SPI) patible serial bus. The HOLD pin may be used to suspend any serial munication without resetting the serial sequence. While the device is paused, transitions on its inputs will be ignored. Our extended VCC range (1.8V to 5.5V) devices enables wide spectrum of applications. Pin Configuration Figure 1: Packaging Types Pin Name CS SCL SI SO Pin Function Chip Select Serial Clock Input Serial Data Input Serial Data Output Pin Name GND VCC WP HOLD Pin Function Ground Power Supply Write Protest Suspends Serial Input All three packaging types e in Pb-free certified. Page 1 of 11 8K09N-Rev.F001 Order Information SPI Serial EEPROM 32K (8-bit wide) EFT25C32 XX X X R = Tape & Reel G = Green Density Package Temperature Range M1= SOP 8L Packaging 32kbits SOP8...
