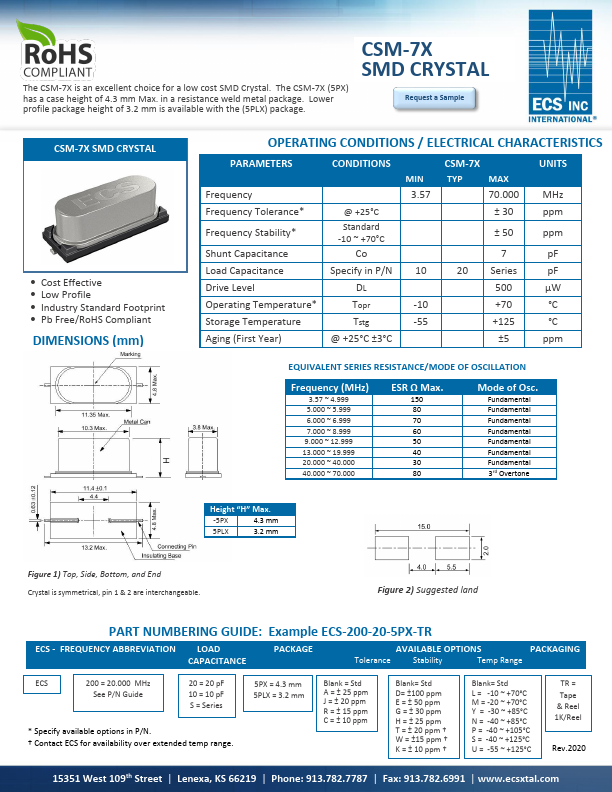

ELECTRICAL CHARACTERISTICS
PARAMETERS Frequency CONDITIONS MIN 3.57 CSM-7X TYP MAX 70.000 UNITS MHz Frequency Tolerance* Frequency Stability* Shunt Capacitance @ +25°C Standard -10 ~ +70°C Co ± 30 ppm ± 50 ppm 7 pF Load Capacitance Specify in P/N 10 20 Series pF Drive Level DL 500 μW Operating Temperature* Topr -10 Storage Temperature Tstg -55 Aging (First Year) @ +25°C ±3°C +70 °C +125 °C ±5 ppm EQUIVALENT SERIES RESISTANCE/MODE OF OSCILLATION Frequency (MHz) 3.57 ~ 4.999 5.000 ~ 5.999 6.000 ~ 6.999 7.000 ~ 8.999 9.000 ~ 12.999 13.000 ~ 19.999 20.000 ~ 40.000 40.000 ~ 70.000 ESR Ω Max. 150 80 70 60 50 40 30 80 Mode of Osc. Fundamental Fundamental Fundamental Fundamental Fundamental Fundamental Fundamental 3rd Overtone Height “H” Max. -5PX 4.3 mm 5PLX 3.2 mm Figure 1) Top, Side, Bottom, and End Crystal is symmetrical, pin 1 & 2 are interchangeable. Figure 2) Suggested land pattern PART NUMBERING GUIDE: Example ECS-200-20-5PX-TR ECS - FREQUENCY ABBREVIATION LOAD CAPACITANCE PACKAGE AVAI...
