Full PDF Text Transcription for ECS-327TXO (Reference)
Note: Below is a high-fidelity text extraction (approx. 800 characters) for
ECS-327TXO. For precise diagrams, and layout, please refer to the original PDF.

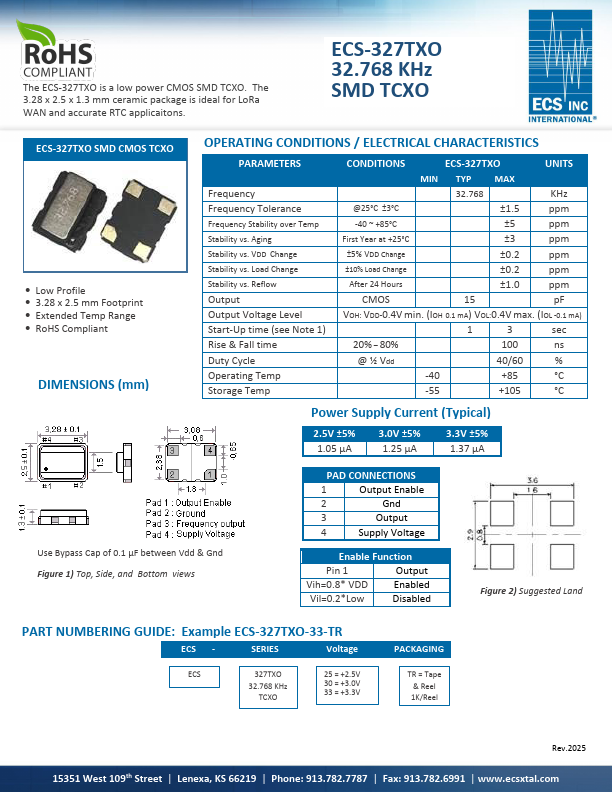

The ECS-327TXO is a low power CMOS SMD TCXO. The 3.28 x 2.5 x 1.3 mm ceramic package is ideal for LoRa WAN and accurate RTC applicaitons. ECS-327TXO 32.768 KHz SMD TCXO E...
View more extracted text
Ra WAN and accurate RTC applicaitons. ECS-327TXO 32.768 KHz SMD TCXO ECS-327TXO SMD CMOS TCXO • Low Profile • 3.28 x 2.5 mm Footprint • Extended Temp Range • RoHS Compliant DIMENSIONS (mm) OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS PARAMETERS Frequency Frequency Tolerance Frequency Stability over Temp Stability vs. Aging Stability vs. VDD Change Stability vs. Load Change Stability vs. Reflow Output Output Voltage Level Start-Up time (see Note 1) Rise & Fall time Duty Cycle Operating Temp Storage Temp CONDITIONS ECS-327TXO UNITS MIN TYP MAX 32.768 KHz @25°C ±3°C ±1.5 ppm -40 ~ +85°C ±5 ppm First Year at +25°C ±3 ppm
ECS-327TXO Datasheet
