ECS-500-CDX-2524

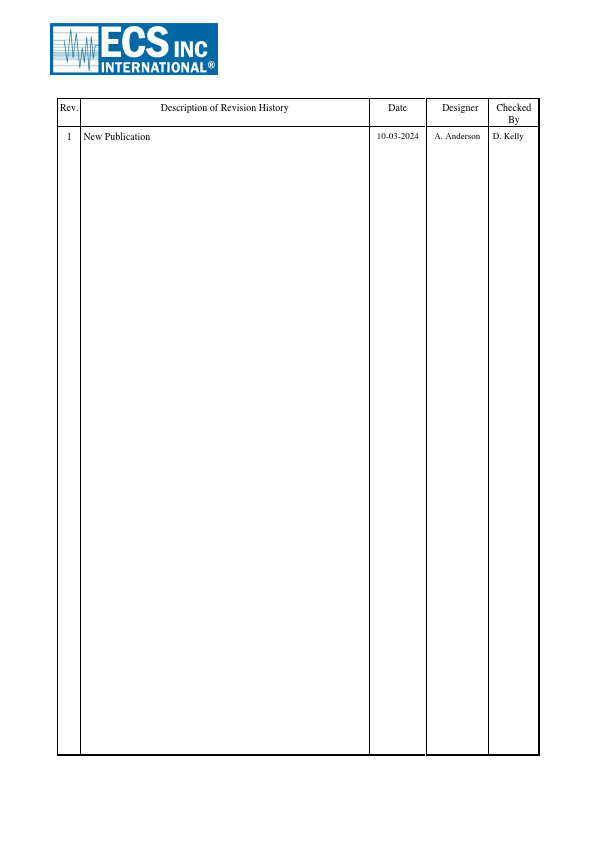

Description of Revision History
1 New Publication
Date 10-03-2024
Designer A. Anderson
Checked By
D. Kelly

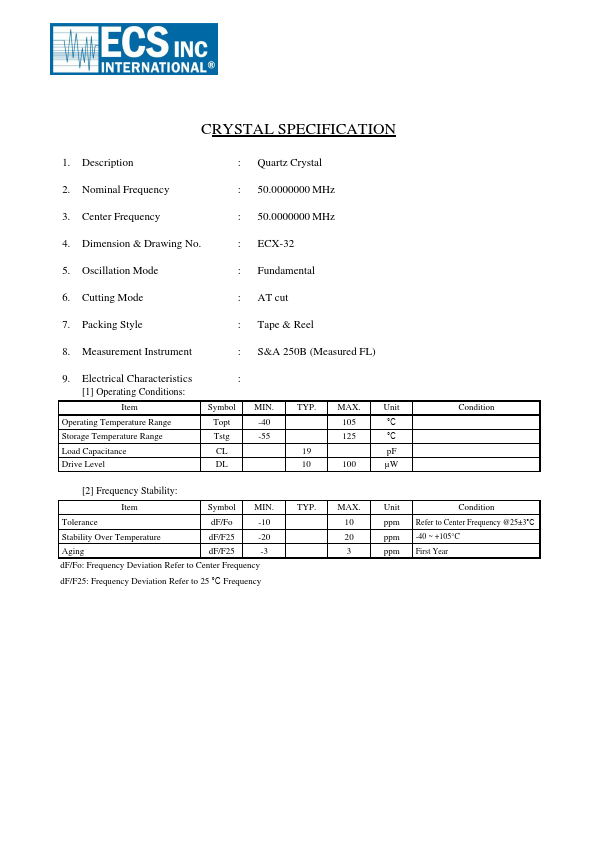

CRYSTAL SPECIFICATION
1. Description
: Quartz Crystal
2. Nominal Frequency
: 50.0000000 MHz
3. Center Frequency
: 50.0000000 MHz
4. Dimension & Drawing No.
: ECX-32
5. Oscillation Mode
: Fundamental
6. Cutting Mode
: AT cut
7. Packing Style
: Tape & Reel
8. Measurement Instrument
: S&A 250B (Measured FL)
9. Electrical Characteristics
:
[1] Operating Conditions:
Item Operating Temperature Range Storage Temperature Range
Symbol MIN. TYP. MAX. Unit
Topt
-40
℃
Tstg
-55
℃
Load Capacitance
19 p F
Drive...
