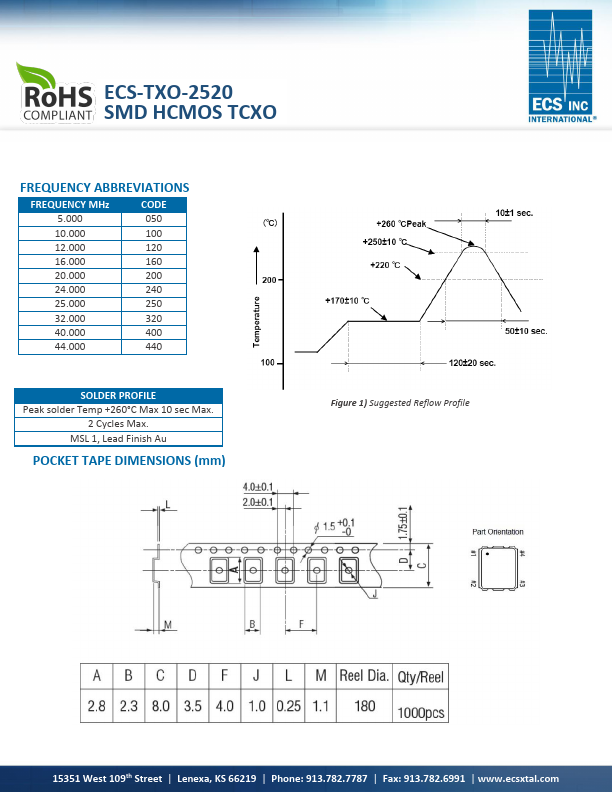

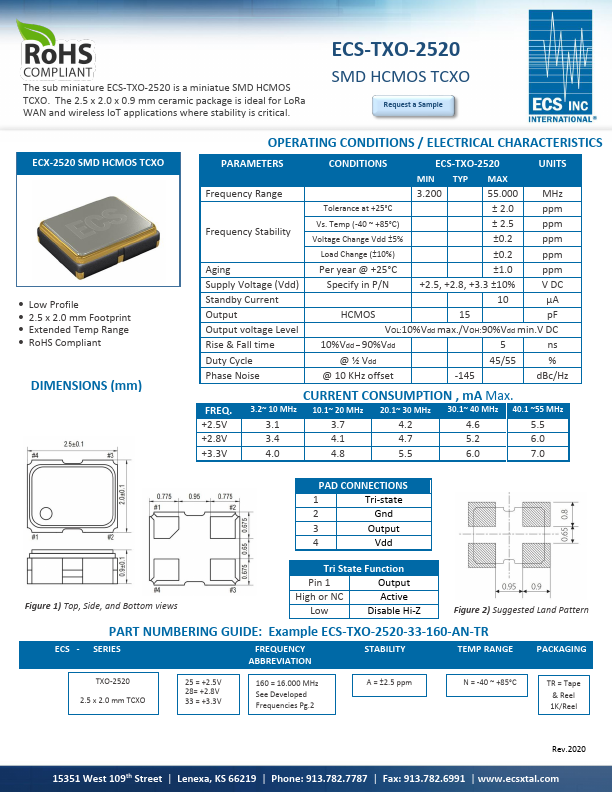

The sub miniature ECS-TXO-2520 is a miniatue SMD HCMOS TCXO. The 2.5 x 2.0 x 0.9 mm ceramic package is ideal for LoRa WAN and wireless IoT applications where stability is critical. ECS-TXO-2520 SMD HCMOS TCXO Request a Sample ECX-2520 SMD HCMOS TCXO • Low Profile • 2.5 x 2.0 mm Footprint • Extended Temp Range • RoHS Compliant DIMENSIONS (mm) OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS PARAMETERS Frequency Range Frequency Stability Aging Supply Voltage (Vdd) Standby Current Output Output voltage Level Rise & Fall time Duty Cycle Phase Noise CONDITIONS ECS-TXO-2520 UNITS MIN TYP MAX 3.200 55.000 MHz Tolerance at +25°C ± 2.0 ppm Vs. Temp (-40 ~ +85°C) ± 2.5 ppm Voltage Change Vdd ±5% ±0.2 ppm Load Change (±10%) ±0.2 ppm Per year @ +25°C ±1.
