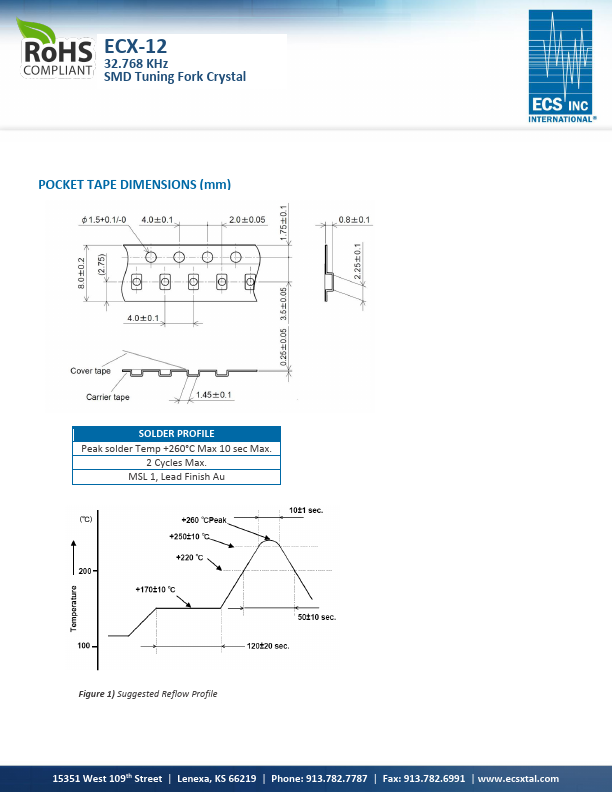

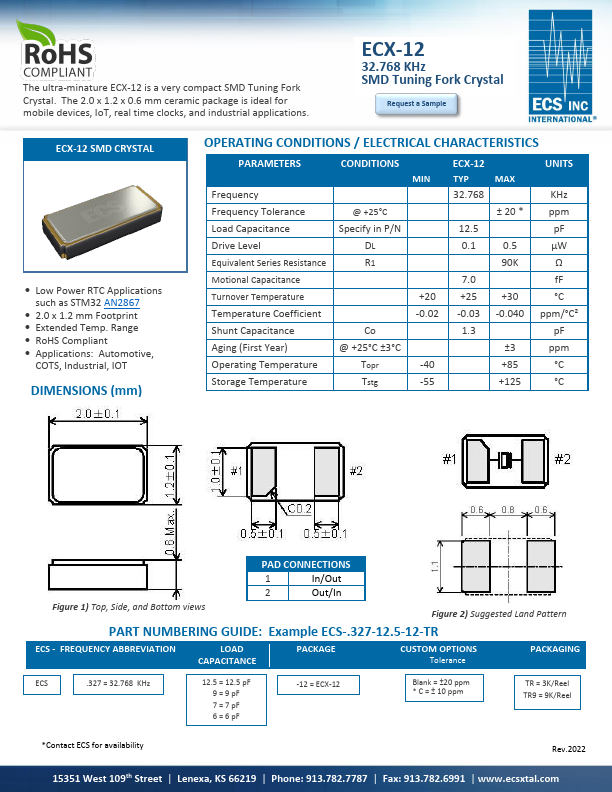

The ultra-minature ECX-12 is a very compact SMD Tuning Fork Crystal. The 2.0 x 1.2 x 0.6 mm ceramic package is ideal for today’s SMD manufacturing environment. ECX-12 32.768 KHz SMD Tuning Fork Crystal Request a Sample ECX-12 SMD CRYSTAL  Low Profile  2.0 x 1.2 mm Footprint  Extended Temp. Range  RoHS Compliant  Applications: Automotive, COTS, Industrial, IOT DIMENSIONS (mm) OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS PARAMETERS Frequency Frequency Tolerance Load Capacitance Drive Level Equivalent Series Resistance Motional Capacitance Turnover Temperature Temperature Coefficient Shunt Capacitance Aging (First Year) Operating Temperature Storage Temperature CONDITIONS @ +25°C Specify in P/N DL R1 Co @ +25°C ±3°C Topr Tstg MIN +20 -0.02 -40 -55 ECX-12 TYP MAX 32.
