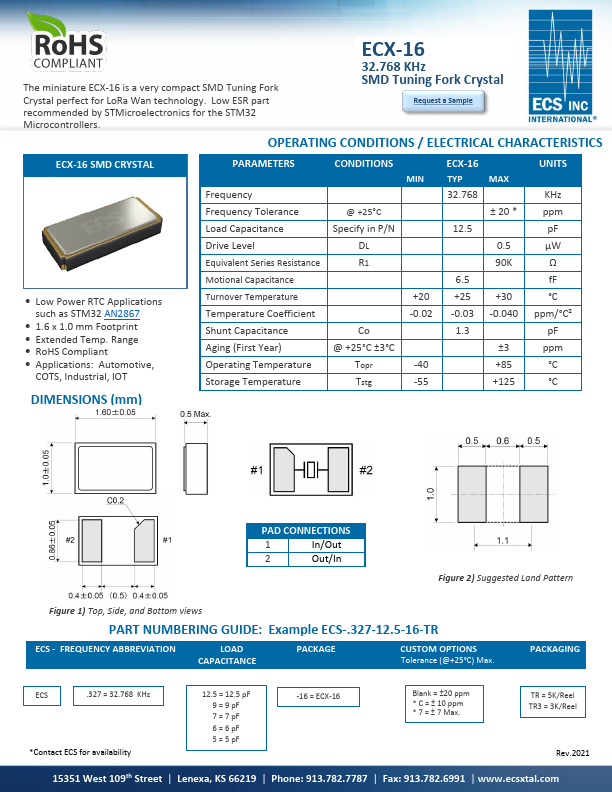

ECS International ECX-16
ECX-16 is a very compact SMD Tuning Fork Crystal perfect for LoRa Wan technology.| Part No. | ECX-16 |
|---|---|
| Datasheet | ECX-16 Download |
| Manufacturer |  ECS International |
| Description | SMD Tuning Fork Crystal |
| Buy | Stock & Price |
ELECTRICAL CHARACTERISTICS
ECX-16 SMD CRYSTAL PARAMETERS Frequency Frequency Tolerance CONDITIONS MIN @ +25°C ECX-16 TYP MAX 32.768 ± 20 * UNITS KHz ppm● Low Power RTC
APPLICATIONS
such as STM32 AN2867● 1.6 x 1.0 mm Footprint
● Extended Temp. Range
● RoHS Compliant
●
APPLICATIONS
: Automotive, COTS, Industrial, IOT DIMENSIONS (mm) Load Capacitance Drive Level Equivalent Series Resistance Motional Capacitance Turnover Temperature Temperature Coefficient Shunt Capacitance Aging (First Year) Operating Temperature Storage Temperature Specify in P/N DL R1 Co @ +25°C ±3°C Topr Tstg +20 -0.02 -40 -55 12.5 6.5 +25 -0.03 1.3 0.5 90K +30 -0.040 ±3 +85 +125 pF μW Ω fF °C ppm/°C² pF ppm °C °C PAD CONNECTIONS 1 In/Out 2 Out/In Figure 2) Suggested Land Pattern Figure 1) Top, Side, and Bottom views PART NUMBERING GUIDE: Example ECS-.327-12.5-16-TR ECS - FREQUENCY ABBREVIATION LOAD CAPACITANCE PACKAGE CUSTOM OPTIONS Tolerance (@+25°C) Max. PACKAGING ECS .327 = 32.768 KHz *Contact ECS for availability 12.5 = 12.5 pF 9 = 9 pF 7 = 7 pF 6 = 6 pF 5 = 5 pF -16 = ECX-16 Blank = ±20 ppm * C = ± 10 ppm * 7 = ± 7 Max.
