ECX-34Q - SMD CRYSTAL

📥 Download Datasheet

Datasheet preview – ECX-34Q

Datasheet Details

Part number ECX-34Q
Manufacturer ECS
File Size 286.36 KB
Description SMD CRYSTAL
Datasheet download datasheet ECX-34Q Datasheet
Additional preview pages of the ECX-34Q datasheet.

📁 Similar Datasheet

  • ECX-5890-24.576M-I2TR - CRYSTAL (Ecliptek)
  • ECX10N20 - N-CHANNEL LATERAL MOSFET (EXICON)
  • ECX10N20R - N-CHANNEL LATERAL MOSFET (EXICON)
  • ECX10P20 - P-CHANNEL LATERAL MOSFET (EXICON)
  • ECX6034 - Surface Mount Crystal (ECM Electronics Limited)
  • ECXO5 - Surface Mount Oscillator (ECM Electronics Limited)
  • ECXO62 - (ECXO62 / ECXO63) Surface Mount Oscillator (ECM Electronics Limited)
  • ECXO63 - (ECXO62 / ECXO63) Surface Mount Oscillator (ECM Electronics Limited)
  • ECXO91 - Surface Mount Oscillator (ECM Electronics Limited)
Other Datasheets by ECS

Full PDF Text Transcription

Click to expand full text

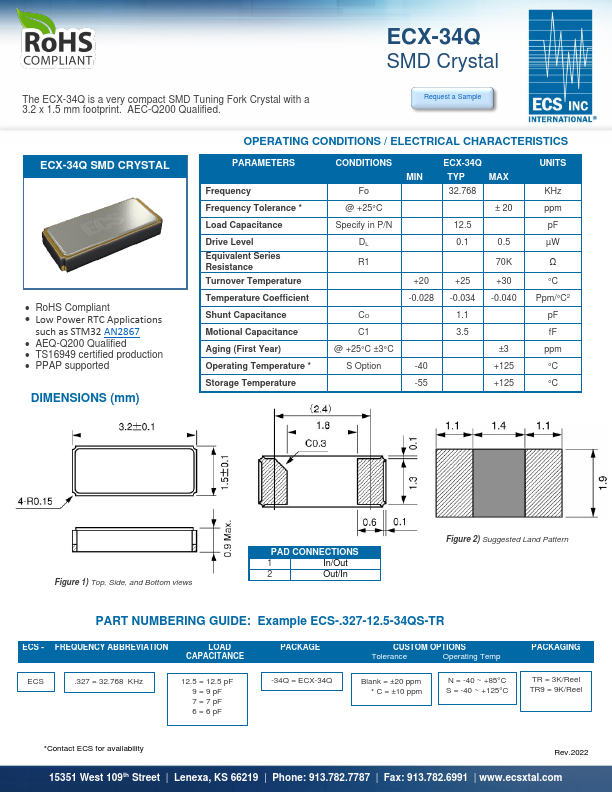

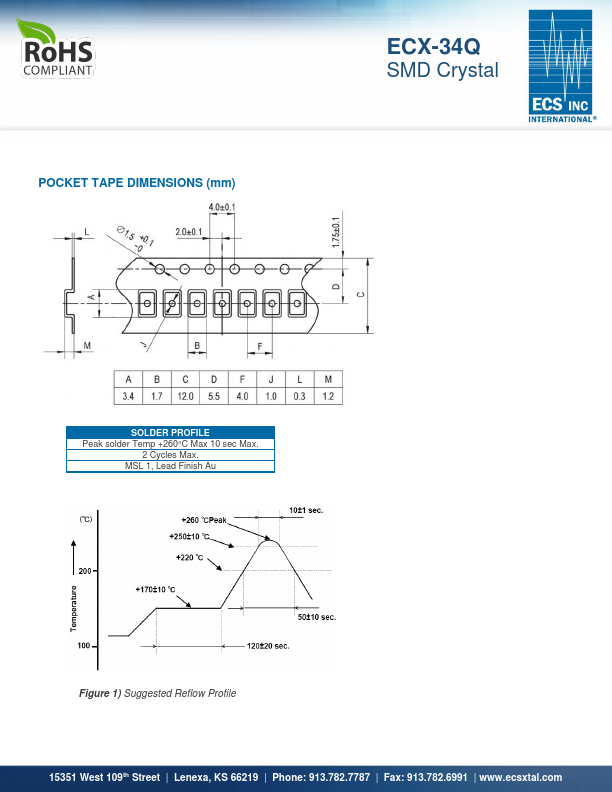

ECX-34Q SMD Crystal The ECX-34Q is a very compact SMD Tuning Fork Crystal with a 3.2 x 1.5 mm footprint. AEC-Q200 Qualified. Request a Sample ECX-34Q SMD CRYSTAL • RoHS Compliant • Low Power RTC Applications such as STM32 AN2867 • AEQ-Q200 Qualified • TS16949 certified production • PPAP supported DIMENSIONS (mm) OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS PARAMETERS Frequency Frequency Tolerance * Load Capacitance Drive Level Equivalent Series Resistance Turnover Temperature Temperature Coefficient Shunt Capacitance Motional Capacitance Aging (First Year) Operating Temperature * Storage Temperature CONDITIONS MIN Fo @ +25°C Specify in P/N DL ECX-34Q TYP MAX 32.768 ± 20 12.5 0.1 0.5 R1 70K CO C1 @ +25°C ±3°C S Option +20 -0.028 -40 -55 +25 -0.034 1.1 3.5 +30 -0.
