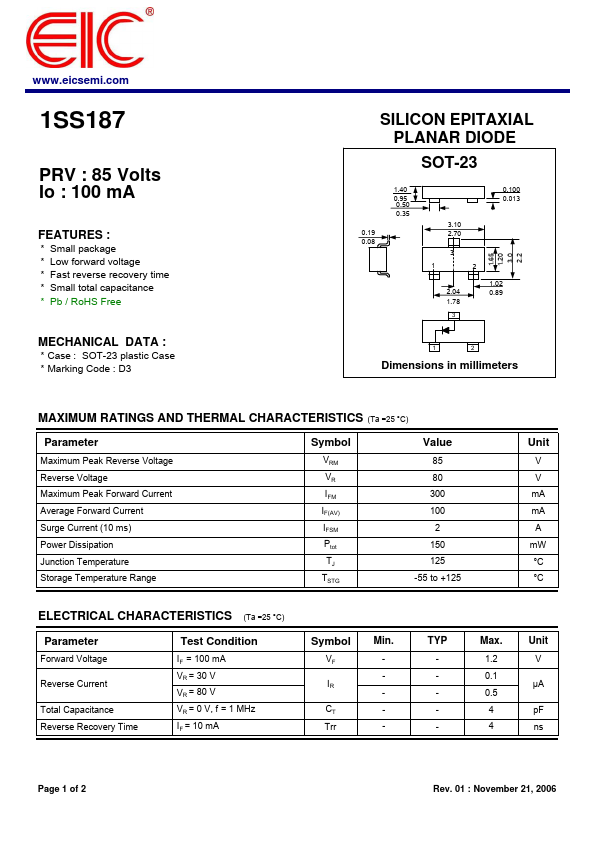

1SS187
1SS187 is 100mA 85V SILICON EPITAXIAL PLANAR DIODE manufactured by EIC Semiconductor.
FEATURES
:
- Small package
- Low forward voltage
- Fast reverse recovery time
- Small total capacitance
- Pb / Ro HS Free
MECHANICAL DATA :
- Case : SOT-23 plastic Case
- Marking Code : D3
SILICON EPITAXIAL PLANAR DIODE
SOT-23
1.40 0.95 0.50 0.35
0.19 0.08
0.100 0.013
3.10 2.70
1.65 1.20 3.0 2.2
Dimensions in millimeters
MAXIMUM RATINGS AND THERMAL CHARACTERISTICS (Ta =25 °C)
Parameter
Maximum Peak Reverse Voltage Reverse Voltage Maximum Peak Forward Current Average Forward Current Surge Current (10 ms) Power Dissipation Junction Temperature Storage Temperature Range
Symbol
VRM VR IFM IF(AV) IFSM Ptot TJ TSTG
Value
85 80 300 100 2 150 125 -55 to +125
Unit
V V m A m A A m W °C °C
ELECTRICAL CHARACTERISTICS (Ta =25 °C)
Parameter
Forward...
