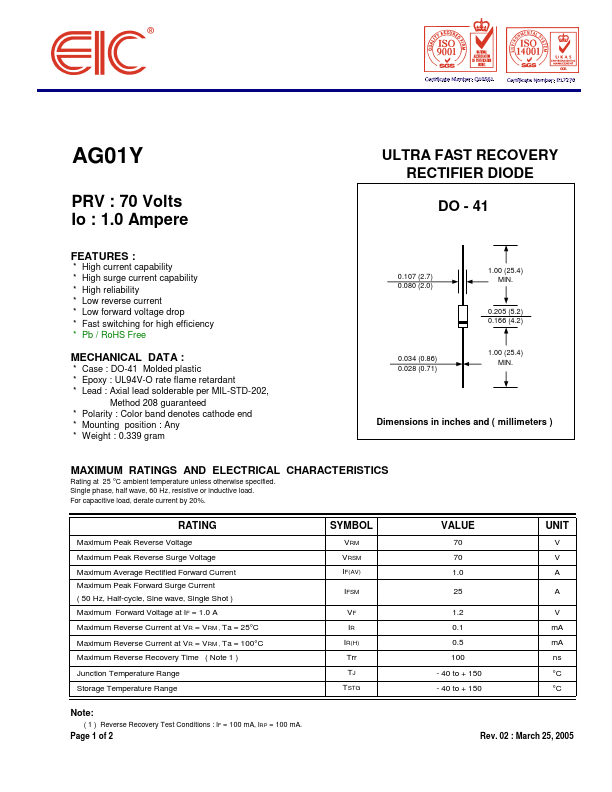

EIC Semiconductor AG01Y
ULTRA FAST RECOVERY RECTIFIER DIODE
| Part No. | AG01Y |
|---|---|
| Datasheet | AG01Y Download |
| Manufacturer |  EIC Semiconductor |
| Description | ULTRA FAST RECOVERY RECTIFIER DIODE |
| Buy | Stock & Price |
FEATURES
: * High current capability * High surge current capability * High reliability * Low reverse current * Low forward voltage drop * Fast switching for high efficiency * Pb / RoHS FreeMECHANICAL DATA
: * Case : DO-41 Molded plastic * Epoxy : UL94V-O rate flame retardant * Lead : Axial lead solderable per MIL-STD-202, Method 208 guaranteed * Polarity : Color band denotes cathode end * Mounting position : Any * Weight : 0.339 gram 0.107 (2.7) 0.080 (2.0) 0.034 (0.86) 0.028 (0.71) 1.00 (25.4) MIN. 0.205 (5.2) 0.166 (4.2) 1.00 (25.4) MIN. Dimensions in inches and ( millimeters )MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating at 25 °C ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%. RATING Maximum Peak Reverse Voltage Maximum Peak Reverse Surge Voltage Maximum Average Rectified Forward Current Maximum Peak Forward Surge Current ( 50 Hz, Half-cycle, Sine wave, Single Shot ) M...
