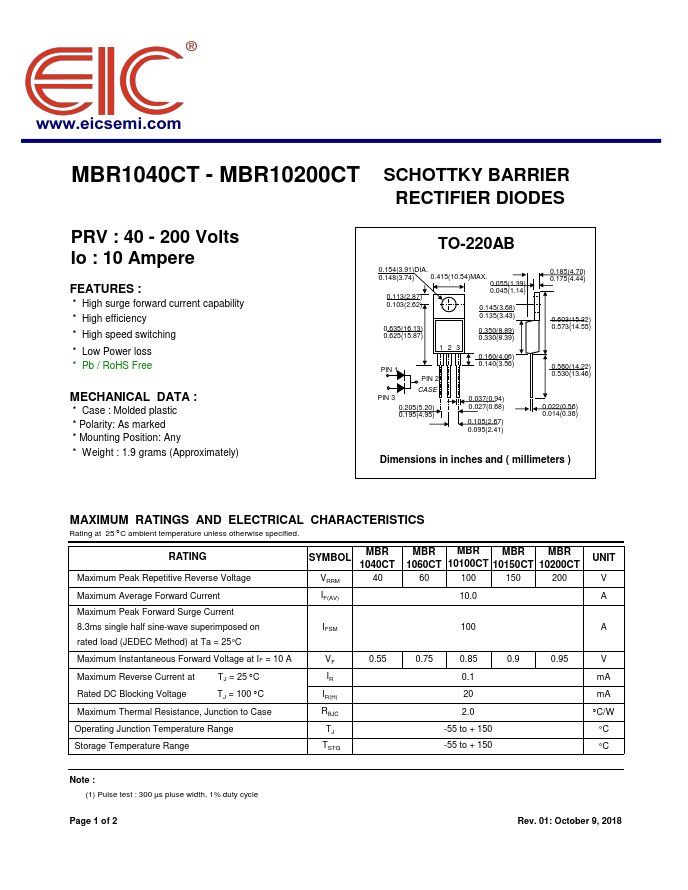

EIC Semiconductor MBR10200CT
SCHOTTKY BARRIER RECTIFIER DIODES
| Part No. | MBR10200CT |
|---|---|
| Datasheet | MBR10200CT Download |
| Manufacturer |  EIC Semiconductor |
| Description | SCHOTTKY BARRIER RECTIFIER DIODES |
| Buy | Stock & Price |
FEATURES
: * High surge forward current capability * High efficiency * High speed switching * Low Power loss * Pb / RoHS FreeMECHANICAL DATA
: * Case : Molded plastic * Polarity: As marked * Mounting Position: Any * Weight : 1.9 grams (Approximately) TO-220AB 0.154(3.91)DIA. 0.148(3.74) 0.415(10.54)MAX. 0.055(1.39) 0.113(2.87) 0.045(1.14) 0.103(2.62) 0.145(3.68) 0.135(3.43) 0.635(16.13) 0.625(15.87) 123 PIN 1 PIN 2 PIN 3 CASE 0.205(5.20) 0.195(4.95) 0.350(8.89) 0.330(8.39) 0.160(4.06) 0.140(3.56) 0.037(0.94) 0.027(0.68) 0.105(2.67) 0.095(2.41) 0.185(4.70) 0.175(4.44) 0.603(15.32) 0.573(14.55) 0.560(14.22) 0.530(13.46) 0.022(0.56) 0.014(0.36) Dimensions in inches and ( millimeters )MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating at 25 C ambient temperature unless otherwise specified. RATING Maximum Peak Repetitive Reverse Voltage Maximum Average Forward Current Maximum Peak Forward Surge Current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) at Ta = 25°C...
