FEATURES
: * For general purpose applications * * The low forward voltage drop and fast switching make it ideal for protection of MOS devices, steering, biasing and coupling diodes for fast switching and low logic level applications. * These diodes are also available in the MiniMELF case with type designations LL103A thru LL103C. * Pb / RoHS Free MECHANICAL DATA
: * Case : SOD-323 plastic Case * Weight : approx. 0.004 g * SD103AWS Marking Code : S4 * SD103BWS Marking Code : S4 * SD103CWS Marking Code : S4 1.10 1.35 0.80 1.15 SCHOTTKY BARRIER DIODES SOD-323 1.80 1.60 2.80 2.30 Dimensions in millimeters 0.40 0.15 (max) 0.25 MAXIMUM RATINGS
and Thermal Characteristics (TC = 25 °C unless otherwise noted) Parameter Repetitive Peak Reverse Voltage Average Forward Rectified Current Maximum Single Cycle Surge 10 µs Square Wave Power Dissipation (Infinite Heat Sink) Thermal Resistance Junction to Ambient Air Junction Temperature Storage temperature range SD103AWS SD103BWS SD103CWS Symbol VRRM I...

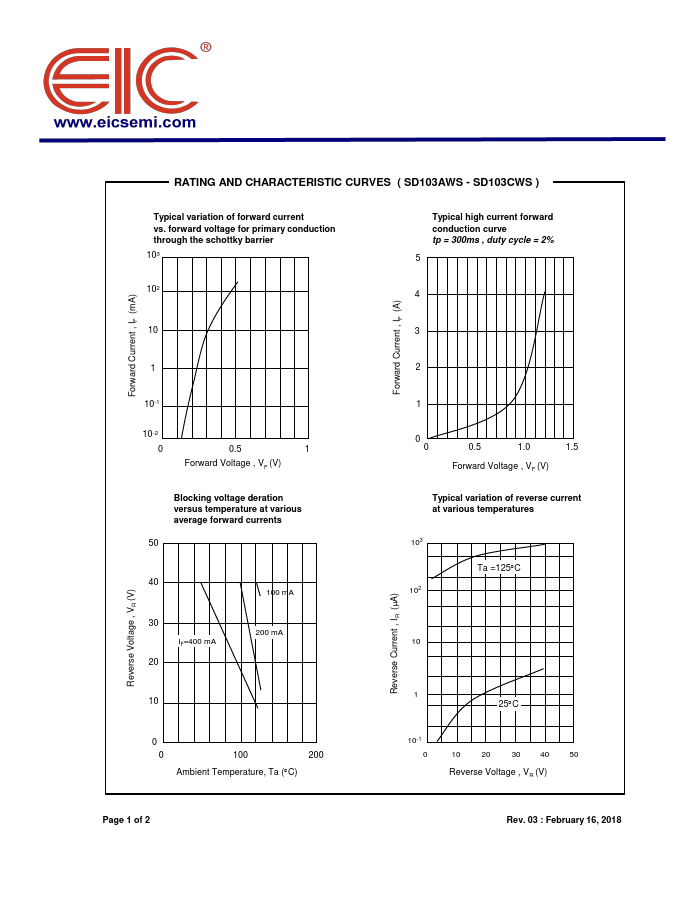

EIC Semiconductor
