SF21

SF21 is SUPER FAST RECTIFIER DIODES manufactured by EIC Semiconductor.

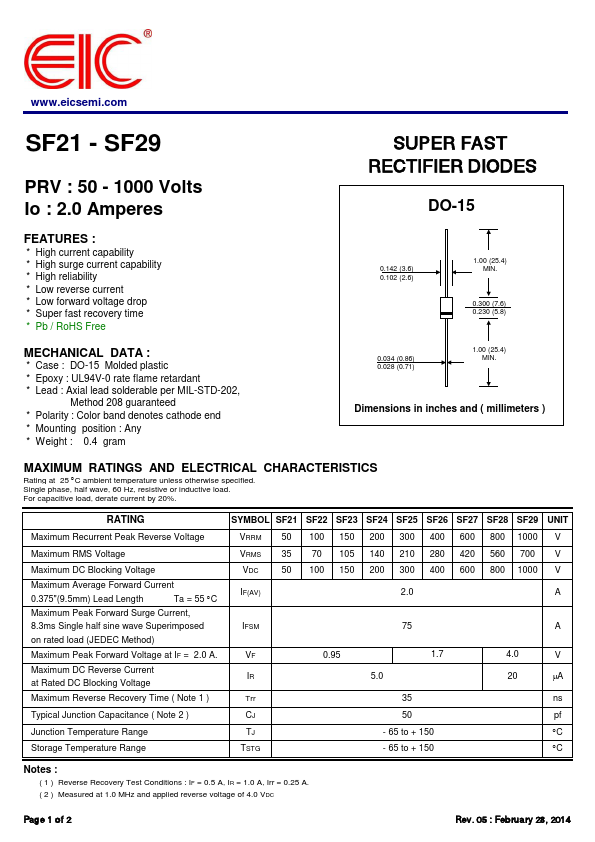

SF21 datasheet preview

SF21 Details

Part number	SF21
Datasheet	SF21 Datasheet PDF (Download)
File Size	48.84 KB
Manufacturer	EIC Semiconductor
Description	SUPER FAST RECTIFIER DIODES

SF21 Overview

2.0 Amperes SUPER FAST RECTIFIER DIODES DO-15.

SF21 Key Features

High current capability
High surge current capability
High reliability
Low reverse current
Low forward voltage drop
Super fast recovery time
Pb / RoHS Free
Case : DO-15 Molded plastic
Epoxy : UL94V-0 rate flame retardant
Lead : Axial lead solderable per MIL-STD-202
