SF21G

Manufacturer: EIC Semiconductor

SF21G datasheet by EIC Semiconductor.

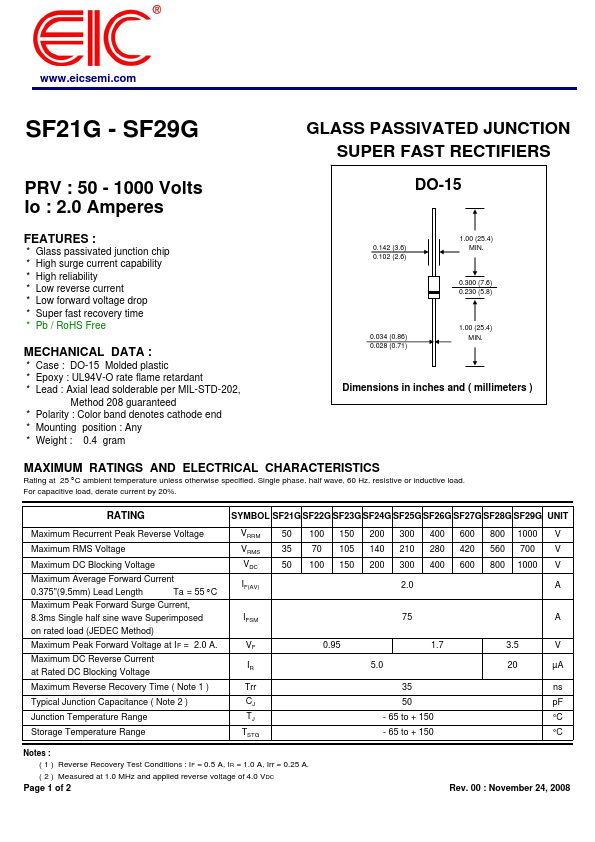

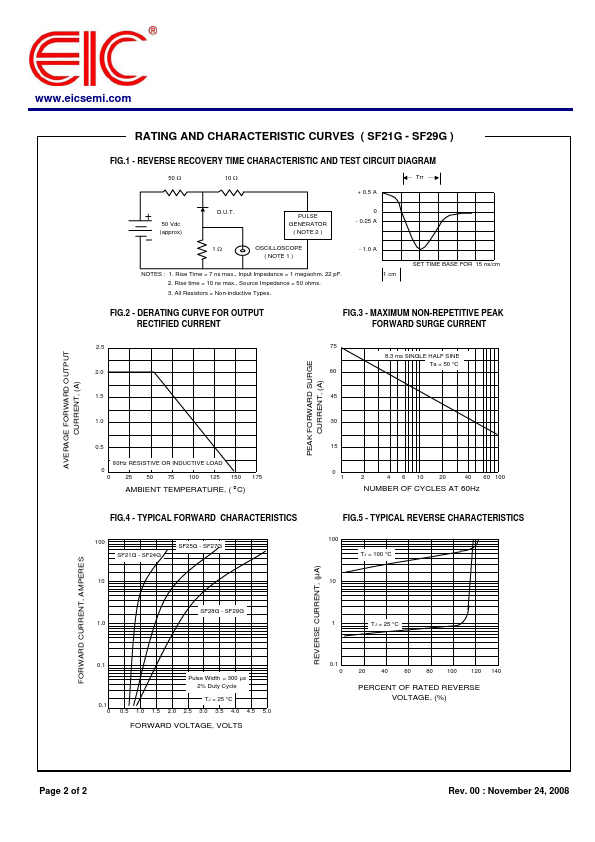

SF21G datasheet preview

SF21G Datasheet Details

Part number	SF21G
Datasheet	SF21G-EIC.pdf
File Size	39.88 KB
Manufacturer	EIC Semiconductor
Description	GLASS PASSIVATED JUNCTION SUPER FAST RECTIFIERS

SF21G Overview

SF21G - SF29G GLASS PASSIVATED JUNCTION SUPER FAST RECTIFIERS PRV.

SF21G Key Features

Glass passivated junction chip
High surge current capability
High reliability
Low reverse current
Low forward voltage drop
Super fast recovery time
Pb / RoHS Free
Case : DO-15 Molded plastic
Epoxy : UL94V-O rate flame retardant
Lead : Axial lead solderable per MIL-STD-202
