SF27G

Manufacturer: EIC Semiconductor

SF27G datasheet by EIC Semiconductor.

This datasheet includes multiple variants, all published together in a single manufacturer document.

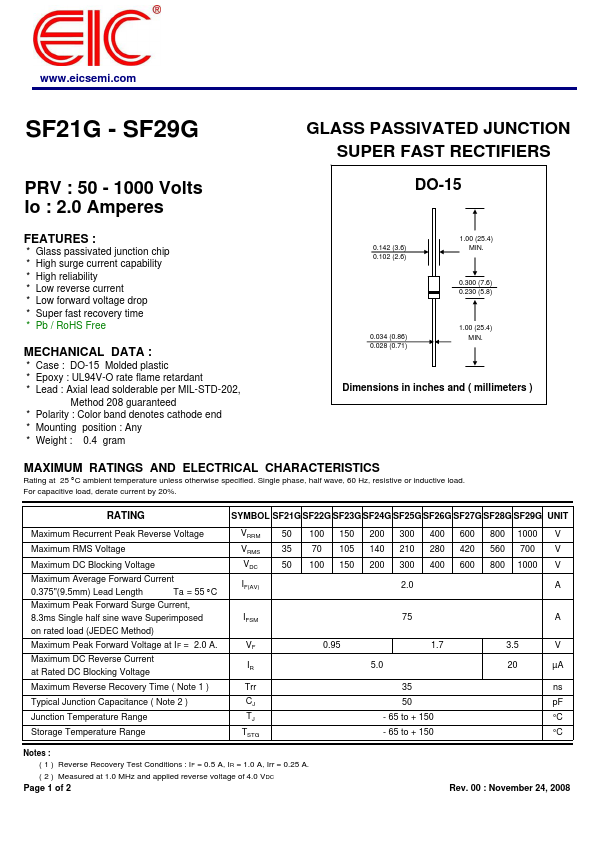

SF27G datasheet preview

SF27G Datasheet Details

Part number	SF27G
Datasheet	SF27G SF21G Datasheet (PDF)
File Size	39.88 KB
Manufacturer	EIC Semiconductor
Description	GLASS PASSIVATED JUNCTION SUPER FAST RECTIFIERS

SF27G Overview

SF21G - SF29G GLASS PASSIVATED JUNCTION SUPER FAST RECTIFIERS PRV.

SF27G Key Features

Glass passivated junction chip
High surge current capability
High reliability
Low reverse current
Low forward voltage drop
Super fast recovery time
Pb / RoHS Free
Case : DO-15 Molded plastic
Epoxy : UL94V-O rate flame retardant
Lead : Axial lead solderable per MIL-STD-202
