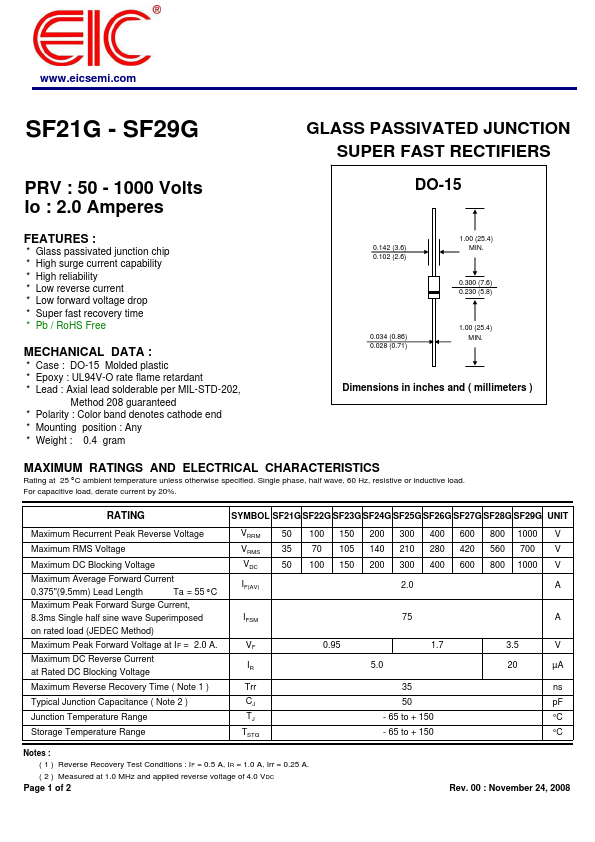

EIC Semiconductor SF28G
GLASS PASSIVATED JUNCTION SUPER FAST RECTIFIERS
- Max Operating Temp : 150°C
- Min Operating Temp : -55°C
Source:
Octopart
| Part No. | SF28G |
|---|---|
| Datasheet | SF28G Download |
| Manufacturer |  EIC Semiconductor |
| Description | GLASS PASSIVATED JUNCTION SUPER FAST RECTIFIERS |
| Buy | Stock & Price |
FEATURES
: * Glass passivated junction chip * High surge current capability * High reliability * Low reverse current * Low forward voltage drop * Super fast recovery time * Pb / RoHS FreeMECHANICAL DATA
: * Case : DO-15 Molded plastic * Epoxy : UL94V-O rate flame retardant * Lead : Axial lead solderable per MIL-STD-202, Method 208 guaranteed * Polarity : Color band denotes cathode end * Mounting position : Any * Weight : 0.4 gram 0.142 (3.6) 0.102 (2.6) 0.034 (0.86) 0.028 (0.71) 1.00 (25.4) MIN. 0.300 (7.6) 0.230 (5.8) 1.00 (25.4) MIN. Dimensions in inches and ( millimeters )MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating at 25 °C ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%. RATING Maximum Recurrent Peak Reverse Voltage Maximum RMS Voltage Maximum DC Blocking Voltage Maximum Average Forward Current 0.375"(9.5mm) Lead Length Ta = 55 °C Maximum Peak Forward Surge Current, 8.3ms Single half sine wave Superimposed on rated load (JEDEC Method) Maximum Peak Forward Voltage at IF = 2.0 A.
