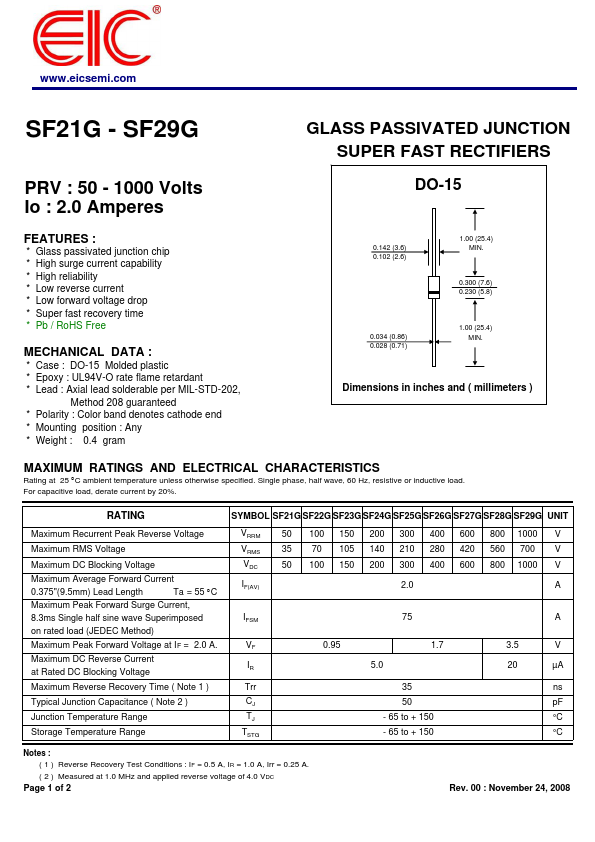

SF29G
SF29G is GLASS PASSIVATED JUNCTION SUPER FAST RECTIFIERS manufactured by EIC Semiconductor.
- Part of the SF21G comparator family.
- Part of the SF21G comparator family.
FEATURES
:
- Glass passivated junction chip
- High surge current capability
- High reliability
- Low reverse current
- Low forward voltage drop
- Super fast recovery time
- Pb / Ro HS Free
MECHANICAL DATA :
- Case : DO-15 Molded plastic
- Epoxy : UL94V-O rate flame retardant
- Lead : Axial lead solderable per MIL-STD-202,
Method 208 guaranteed
- Polarity : Color band denotes cathode end
- Mounting position : Any
- Weight : 0.4 gram
0.142 (3.6) 0.102 (2.6)
0.034 (0.86) 0.028 (0.71)
1.00 (25.4) MIN.
0.300 (7.6) 0.230 (5.8)
1.00 (25.4) MIN.
Dimensions in inches and ( millimeters )

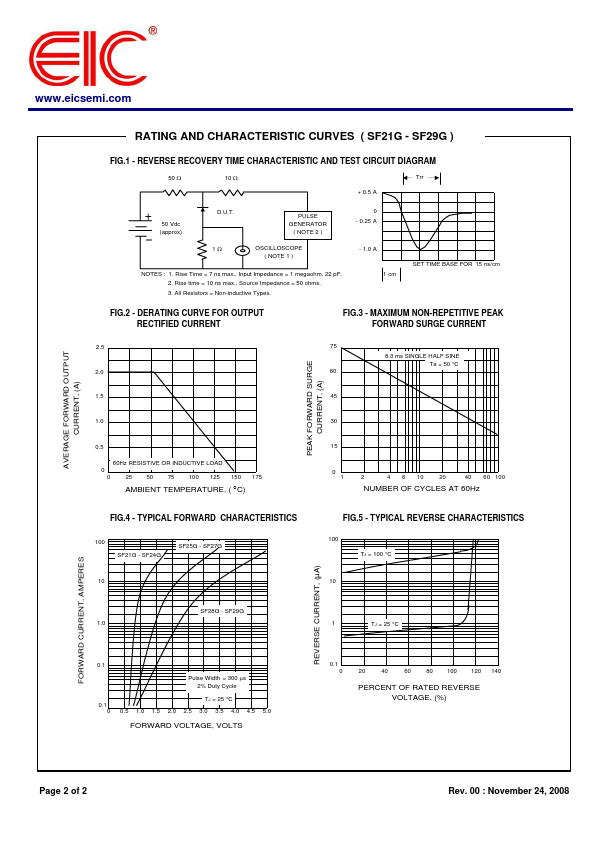

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating at 25 °C ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%.
RATING
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Current
0.375"(9.5mm) Lead Length
Ta = 55 °C
Maximum Peak Forward Surge Current,
8.3ms Single half sine wave Superimposed on rated load (JEDEC Method)
Maximum Peak Forward Voltage at IF = 2.0 A.
Maximum DC Reverse Current at Rated DC Blocking Voltage
Maximum Reverse Recovery Time ( Note 1 )
Typical Junction Capacitance ( Note 2 )
Junction Temperature Range
Storage Temperature...
