SS12
SS12 is SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS manufactured by EIC Semiconductor.
FEATURES
:
- High current capability
- High surge current capability
- High reliability
- High efficiency
- Low power loss
- Low forward voltage drop
- Low cost
- Pb / Ro HS Free
5.65 5.35 4. 6 4. 2
2.3 2.1
1.5 1.1
MECHANICAL DATA :
- Case : SMA Molded plastic
- Epoxy : UL94V-O rate flame retardant
- Polarity : Color band denotes cathode end
- Mounting position : Any
- Weight : 0.060 gram (Approximately)
2.1 1.7
Dimensions in millimeters
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating at 25 C ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%.
RATING
SYMBOL SS12 SS13 SS14 SS15 SS16 SS18 SS19 SS110 UNIT
Maximum Recurrent Peak Reverse Voltage Maximum RMS Voltage Maximum DC Blocking Voltage Maximum Average Forward Current See Fig.1 Maximum Peak Forward Surge Current, 8.3ms single half sine wave superimposed on rated load (JEDEC Method)
VRRM
20 30 40 50 60 80 90 100
VRMS
14 21 28 35 42 56...

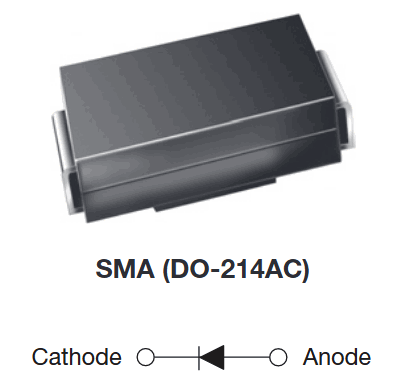

Representative SS12 image (package may vary by manufacturer)
