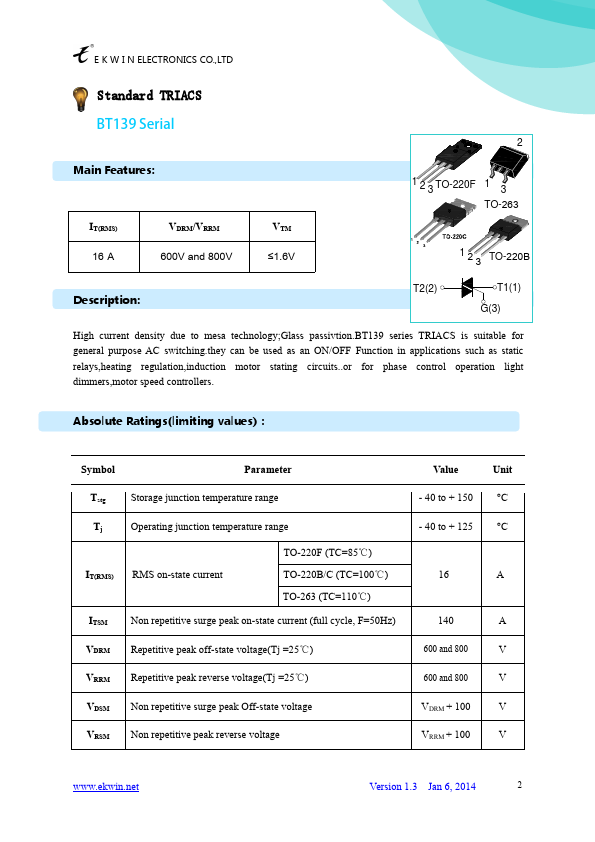

BT139
Features
:
IT(RMS)
VDRM/VRRM
1 2 3 TO-220F 1 3 TO-263
16 A
600V and 800V
≤1.6V
1 2 3 TO-220B
Description
:
T2(2)
T1(1) G(3)
High current density due to mesa technology;Glass passivtion.BT139 series TRIACS is suitable for general purpose AC switching.they can be used as an ON/OFF Function in applications such as static relays,heating regulation,induction motor stating circuits..or for phase control operation light dimmers,motor speed controllers.
Absolute Ratings(limiting values)：
Symbol
Parameter
Tstg
Storage junction temperature range
Tj
Operating junction temperature range
IT(RMS) RMS on-state current
TO-220F (TC=85℃) TO-220B/C (TC=100℃) TO-263 (TC=110℃)
ITSM Non repetitive surge peak on-state current (full cycle, F=50Hz)
VDRM Repetitive peak off-state voltage(Tj =25℃)
VRRM Repetitive peak reverse voltage(Tj =25℃)
VDSM Non repetitive surge peak Off-state voltage
VRSM Non repetitive peak reverse voltage
Value
Unit
- 40 to + 150 °C
- 40 to + 125...
