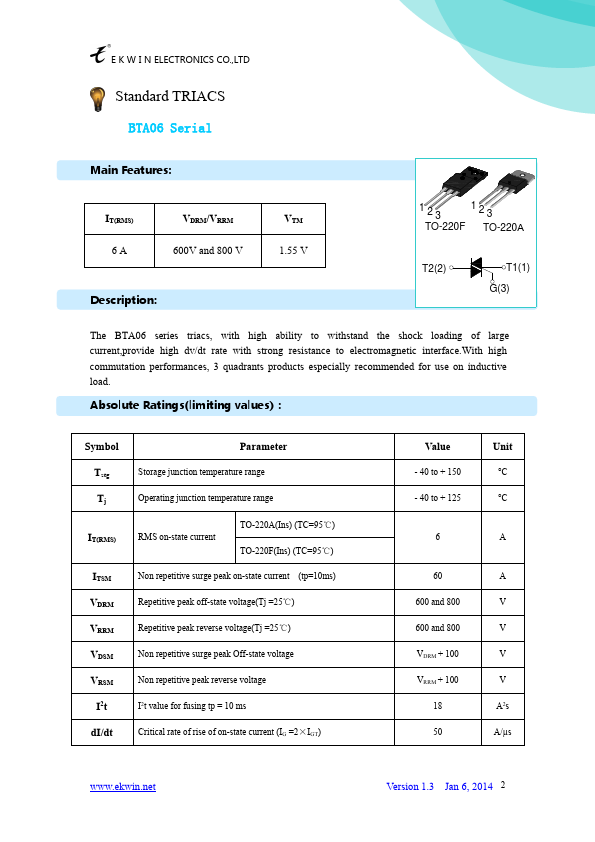

FEATURES
: IT(RMS) 6A VDRM/VRRM 600V and 800 V VTM 1.55 V DESCRIPTION
: 123 123 TO-220F TO-220A T2(2) T1(1) G(3) Absolute Ratings(limiting values)： Symbol Tstg Tj IT(RMS) ITSM VDRM VRRM VDSM VRSM I2t dI/dt Parameter Storage junction temperature range Operating junction temperature range RMS on-state current TO-220A(Ins) (TC=95℃) TO-220F(Ins) (TC=95℃) Non repetitive surge peak on-state current (tp=10ms) Repetitive peak off-state voltage(Tj =25℃) Repetitive peak reverse voltage(Tj =25℃) Non repetitive surge peak Off-state voltage Non repetitive peak reverse voltage I2t value for fusing tp = 10 ms Critical rate of rise of on-state current (IG =2×IGT) Value - 40 to + 150 - 40 to + 125 Unit °C °C 6 A 60 600 and 800 600 and 800 VDRM + 100 VRRM + 100 18 50 A V V V V A2s A/µs Version 1.3 Jan 6, 2014 2 E K W I N ELECTRONICS CO.,LTD IGM PG(AV) PGM Peak gate current Average gate power dissipation Peak gate power 2 A 1 W 5 W ELECTRICAL CHARACTERISTICS

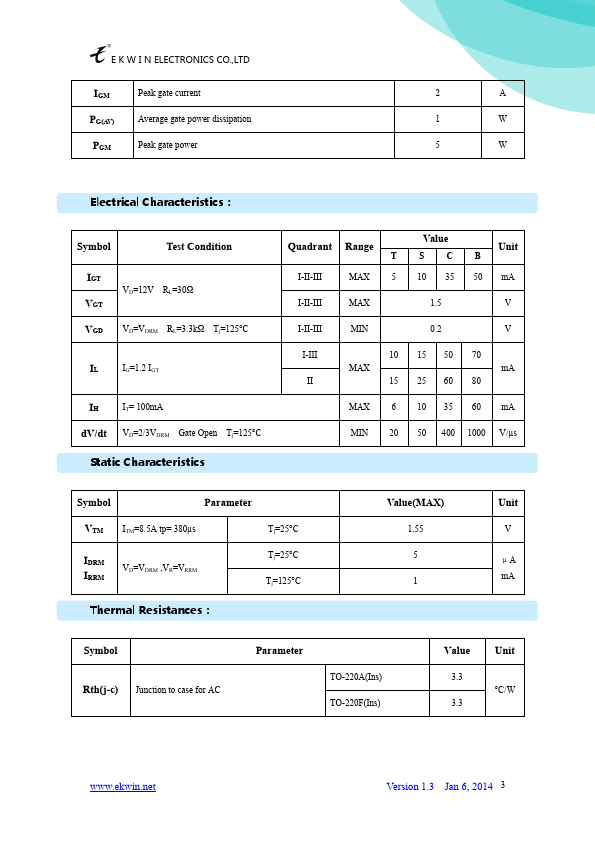

： Symbol Test Condition IGT VGT VGD VD=12V RL=30Ω...
