BTA20
Features
:
IT(RMS) 20 A
VDRM/VRRM
600V 800V
Description
:
VTM ≤1.55 V
TO-220F TO-220AB
T2(2)
T1(1) G(3)

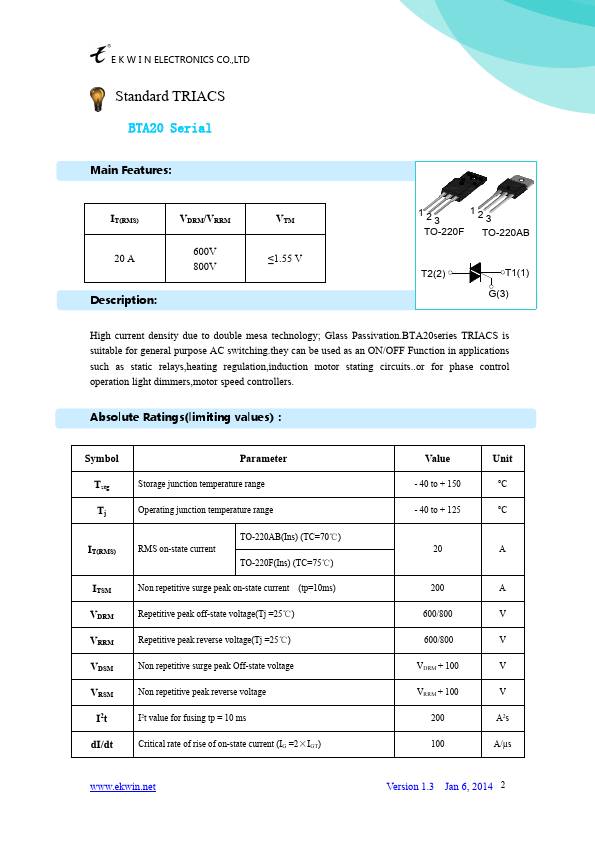

High current density due to double mesa technology; Glass Passivation.BTA20series TRIACS is suitable for general purpose AC switching.they can be used as an ON/OFF Function in applications such as static relays,heating regulation,induction motor stating circuits..or for phase control operation light dimmers,motor speed controllers.
Absolute Ratings(limiting values)：
Symbol Tstg Tj
IT(RMS)
ITSM VDRM VRRM VDSM VRSM
I2t d I/dt
Parameter
Storage junction temperature range
Operating junction temperature range
RMS on-state current
TO-220AB(Ins) (TC=70℃) TO-220F(Ins) (TC=75℃)
Non repetitive surge peak on-state current (tp=10ms)
Repetitive peak off-state voltage(Tj =25℃)
Repetitive peak reverse voltage(Tj =25℃)
Non repetitive surge peak Off-state voltage
Non repetitive peak reverse voltage
I2t value for fusing tp = 10 ms
Critical rate of rise of on-state current...
