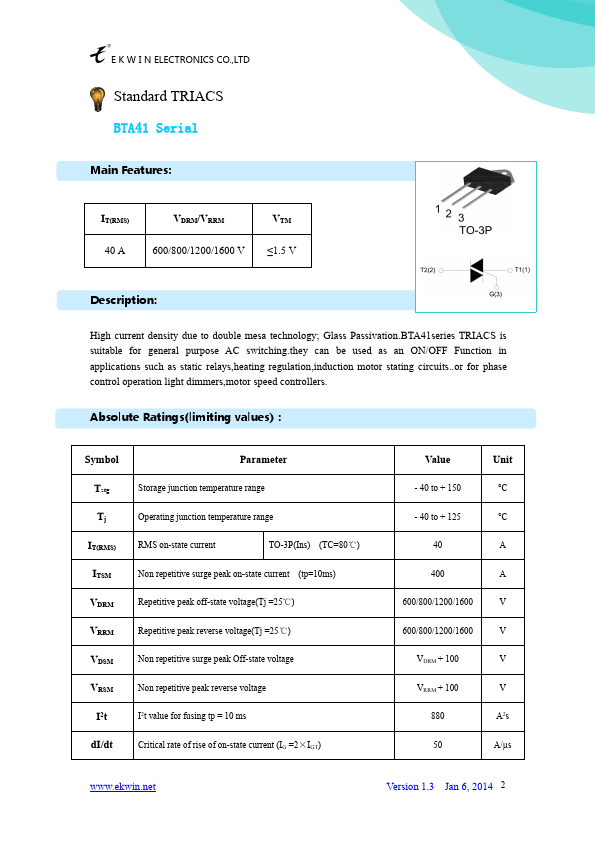

BTA41
Features
:
IT(RMS) 40 A
VDRM/VRRM 600/800/1200/1600 V
VTM ≤1.5 V
Description
:
High current density due to double mesa technology; Glass Passivation.BTA41series TRIACS is suitable for general purpose AC switching.they can be used as an ON/OFF Function in applications such as static relays,heating regulation,induction motor stating circuits..or for phase control operation light dimmers,motor speed controllers.
Absolute Ratings(limiting values)：
Symbol
Parameter
Tstg
Storage junction temperature range
Tj
Operating junction temperature range
IT(RMS)
RMS on-state current
TO-3P(Ins) (TC=80℃)
ITSM
Non repetitive surge peak on-state current (tp=10ms)
VDRM
Repetitive peak off-state voltage(Tj =25℃)
VRRM VDSM
Repetitive peak reverse voltage(Tj =25℃) Non repetitive surge peak Off-state voltage
VRSM I2t
Non repetitive peak reverse voltage I2t value for fusing tp = 10 ms d I/dt
Critical rate of rise of on-state current (IG =2×IGT)
Value
Unit
- 40 to + 150
°C
- 40 to +...
