EKWIN ELECTRONICS BTB24
Standard TRIACS
| Part No. | BTB24 |
|---|---|
| Datasheet | BTB24 Download |
| Manufacturer | EKWIN ELECTRONICS |
| Description | Standard TRIACS |
| Buy | Stock & Price |

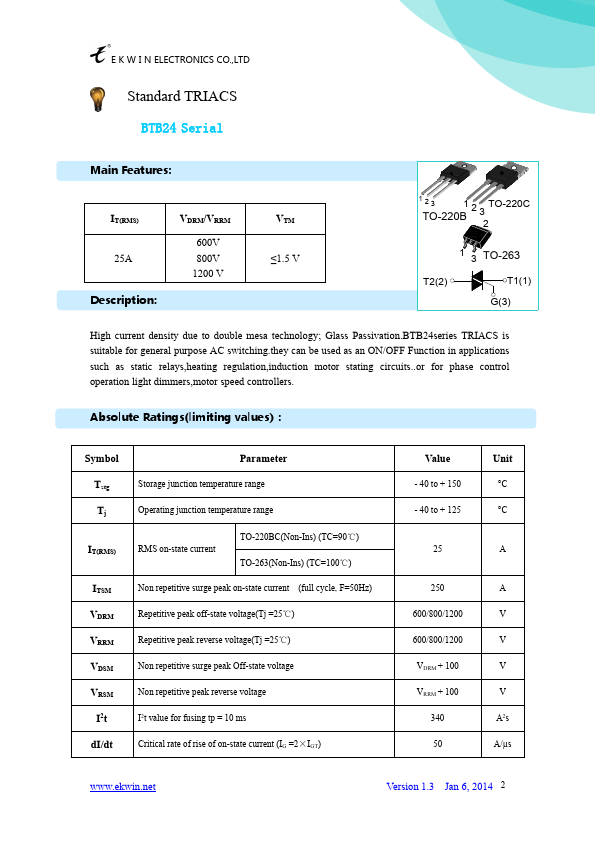

FEATURES
: IT(RMS) 25ADESCRIPTION
: VDRM/VRRM 600V 800V 1200 V VTM ≤1.5 V 123 1 TO-220B 2 TO-220C 3 2 1 3 TO-263 T2(2) T1(1) G(3) High current density due to double mesa technology; Glass Passivation.BTB24series TRIACS is suitable for general purpose AC switching.they can be used as an ON/OFF Function in applications such as static relays,heating regulation,induction motor stating circuits..or for phase control operation light dimmers,motor speed controllers. Absolute Ratings(limiting values)： Symbol Tstg Tj IT(RMS) ITSM VDRM VRRM VDSM VRSM I2t dI/dt Parameter Storage junction temperature range Operating junction temperature range RMS on-state current TO-220BC(Non-Ins) (TC=90℃) TO-263(Non-Ins) (TC=100℃) Non repetitive surge peak on-state current (full cycle, F=50Hz) Repetitive peak off-state voltage(Tj =25℃) Repetitive peak reverse voltage(Tj =25℃) Non repetitive surge peak Off-state voltage Non repetitive peak reverse voltage I2t value for fusing tp = 10 ms Critical rate of rise of on-...
