EM4205 - 512 bit Read/Write Multi-purpose Contactless Identification Device

General Description

EM4205/4305 is a CMOS integrated circuit intended for use in electronic Read/Write RF transponders.

It is suitable for low cost solutions like animal tagging applications.

The IC communication protocol is compatible with the EM4469/4569 family.

Key Features

  •  512 bit EEPROM organized in 16 words of 32 bit  32 bit unique identifier (UID)  32 bit Password read and write protection  ISO 11784 / 11785 Standard Compliant  Lock feature converts EEPROM words into Read Only  Two data encodings: Manchester and Bi-phase  Multi-purpose data rate: 8, 16, 32, 40 and 64 RF clocks  Reader Talk First feature  Compatible with EM4469/EM4569 communication protocol  100 to 150 kHz frequency range  On-chip rectifier and voltage limiter  No external supply bu.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
EM428M1644RTA Double DATA RATE SDRAM Eorex
EM42AM1684RTC Double DATA RATE SDRAM Eorex
EM42BM3284LBA Double DATA RATE SDRAM Eorex
EM42CM1684RTA Double DATA RATE SDRAM Eorex
EM42GT TCXO EUROQUARTZ limited

Other Datasheets by EM Microelectronic (Swatch Group)

Part Number Description
EM4200 128-bit Read Only Low Frequency Contactless Identification
EM4222 Read-Only UHF Identification
EM4223 Read-only UHF Radio Frequency Identification
EM4233SLIC Long range passive CMOS
EM4237SLIC 1k-bit R/W Memory

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

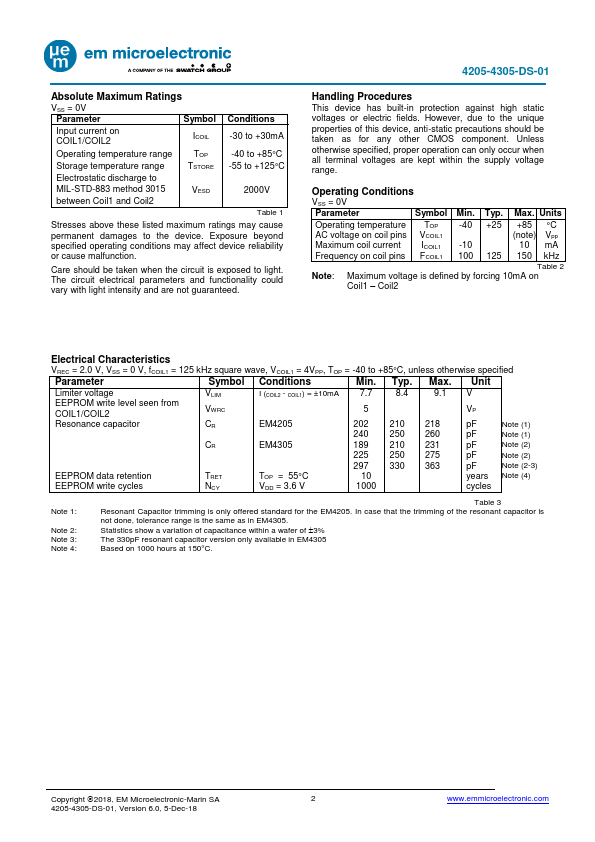

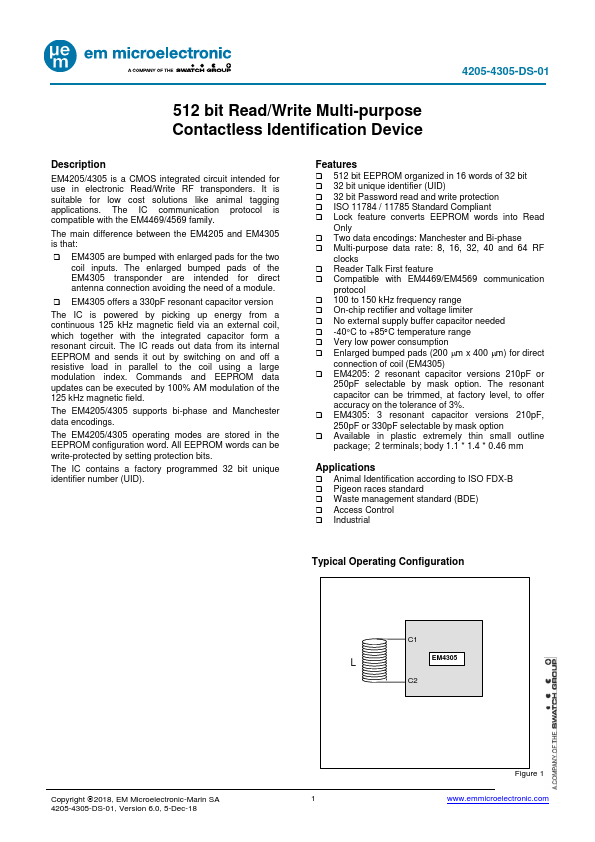

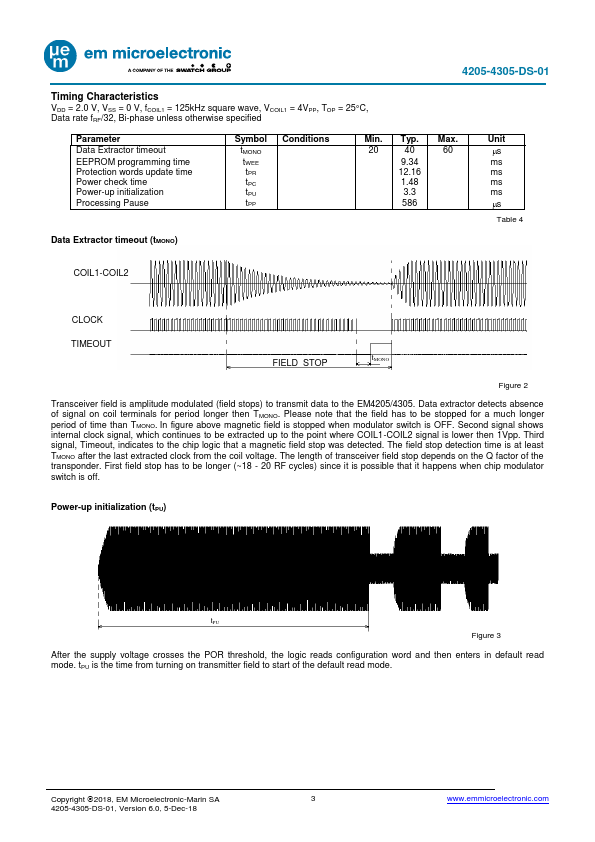

4205-4305-DS-01 512 bit Read/Write Multi-purpose Contactless Identification Device Description EM4205/4305 is a CMOS integrated circuit intended for use in electronic Read/Write RF transponders. It is suitable for low cost solutions like animal tagging applications. The IC communication protocol is compatible with the EM4469/4569 family. The main difference between the EM4205 and EM4305 is that:  EM4305 are bumped with enlarged pads for the two coil inputs. The enlarged bumped pads of the EM4305 transponder are intended for direct antenna connection avoiding the need of a module.
