EM6127 - ULTRA LOW POWER ENHANCED LCD & LED CONTROLLER AND DRIVER

General Description

EM6127 is a controller and driver for graphic or character monochrome TN Twisted Nematic, STN

Super-Twisted Nematic and Filtered STN LCD displays.

Several EM6127 integrated functions save system power needs.

Key Features

  • Max. addressable matrix: 32 rows x 101 columns.
  • Slim IC for Chip-On-Film, Glass or Plastic technologies (COF, COG, COP).
  • VDD supply voltage: o Low voltage configuration: 1.2V to 2V o Standard configuration: 2V to 3.6 V.
  • Power consumption: o Full matrix mode, 20 µA with internally generated VLCD and external capacitors o One character line mode, 5 µA with internally generated VLCD and external capacitors.
  • I2C interface and Serial bus interface.
  • R/W Internal Display.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
EM61200 8-Channel Wave-table Music Synthesizer ELAN Microelectronics
EM61200 8-Channel Wave-Table Music Synthesizer ELAN Microelectronics
EM6128K1600V 128Kx8 LP SRAM Eorex Corporation
EM6128K800V 128Kx8 LP SRAM Eorex Corporation
EM61000 8-Channel Wave-Table Music Synthesizer ELAN Microelectronics

Other Datasheets by EM Microelectronic (Swatch Group)

Part Number Description
EM6121 LCD Controller and Driver Character Generator ROM and RAM inside
EM6124 Digitally Programmable 8 to 25 Multiplex LCD Controller & Driver
EM6125 Digitally programmable 65 and 81 multiplex rate LCD Controller and Driver
EM6126 Digitally programmable 65 and 81 multiplex rate LCD Controller and Driver
EM6110 Universal LCD Controller

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

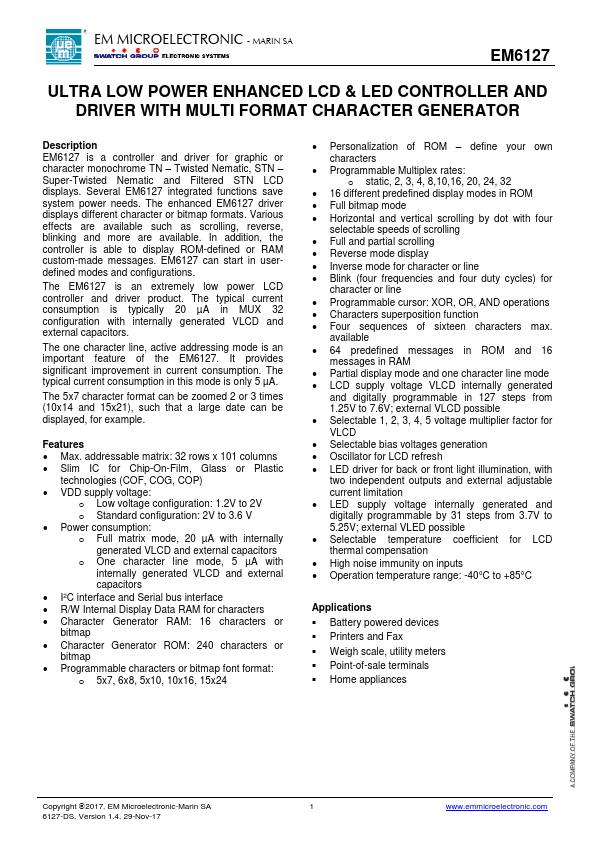

EM MICROELECTRONIC - MARIN SA EM6127 ULTRA LOW POWER ENHANCED LCD & LED CONTROLLER AND DRIVER WITH MULTI FORMAT CHARACTER GENERATOR Description EM6127 is a controller and driver for graphic or character monochrome TN – Twisted Nematic, STN – Super-Twisted Nematic and Filtered STN LCD displays. Several EM6127 integrated functions save system power needs. The enhanced EM6127 driver displays different character or bitmap formats. Various effects are available such as scrolling, reverse, blinking and more are available. In addition, the controller is able to display ROM-defined or RAM custom-made messages. EM6127 can start in userdefined modes and configurations. The EM6127 is an extremely low power LCD controller and driver product.
