EM6323 - Reset Circuit

General Description

The EM6323/24 are low power, high precision reset ICs featuring a manual reset and a watchdog inputs.

flexibility in the application.

Key Features

  •  Ultra-low supply current of 3.8μA (VDD=3.3V)  Operating temperature range: -40°C to +125°C  1.5% reset threshold accuracy  11 reset threshold voltages VTH: 4.63V, 4.4V, 3.08V, 2.93V, 2.8V, 2.63V, 2.3V, 2.2V, 2.0V, 1.8V, 1.66V, 1.57V, 1.38V, 1.31V  200ms reset timeout period (1.6ms, 25ms, 1600ms on request)  1.6s watchdog timeout period (6.2ms, 102ms, 25.6s on request)  3 reset output options: Active-low RESET push-pull Active-low RESET open-drain Active-high RESET push-pull  Detection.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
EM636165 1M x 16 Synchronous DRAM Etron
EM636165-XXI 1Mega x 16 Synchronous DRAM Etron Technology
EM636327 512K x 32 High Speed Synchronous Graphics DRAM(SGRAM) Etron Technology Inc.
EM637327 1Mega x 32 SGRAM Etron Technology Inc.
EM638165 4M x 16 bit Synchronous DRAM Etron Technology

Other Datasheets by EM Microelectronic (Swatch Group)

Part Number Description
EM6324 Reset Circuit
EM6325 Reset Circuit
EM6352 High-Precision Voltage Detector
EM6353 Reset Circuit
EM6354 Reset Circuit

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

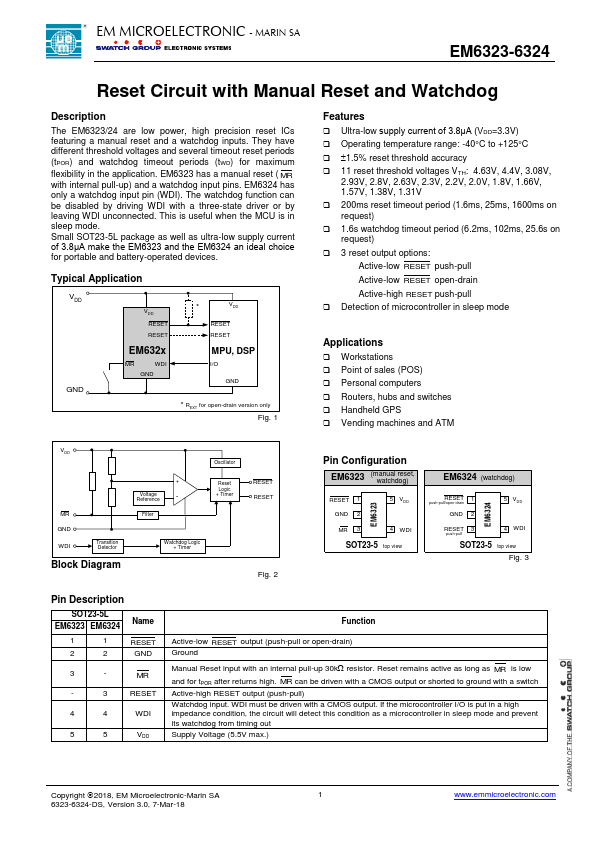

EM MICROELECTRONIC - MARIN SA EM6323-6324 Reset Circuit with Manual Reset and Watchdog Description The EM6323/24 are low power, high precision reset ICs featuring a manual reset and a watchdog inputs. They have different threshold voltages and several timeout reset periods (tPOR) and watchdog timeout periods (tWD) for maximum flexibility in the application. EM6323 has a manual reset ( MR with internal pull-up) and a watchdog input pins. EM6324 has only a watchdog input pin (WDI). The watchdog function can be disabled by driving WDI with a three-state driver or by leaving WDI unconnected. This is useful when the MCU is in sleep mode. Small SOT23-5L package as well as ultra-low supply current of 3.
