EM6580 - Ultra Low Power 8-pin Flash Microcontroller

Description

The EM6580 is a low power Flash 4-bit microcontroller coming in a small 8-pin SO package and working up to 0.4 MIPS.

It comes with an integrated 4-bit ADC and 2 high current drive outputs of 10mA and it requires no external component.

Features

  • ‰ True Low Power: ‰ ‰ ‰ ‰ ‰ ‰ ‰ ‰ ‰ ‰ ‰ ‰ ‰ ‰ ‰ ‰ ‰ ‰ ‰ ‰ ‰ ‰ 5.8 µA active mode 3.3 µA standby mode 0.32 µA sleep mode Large Supply Voltage 2.0 V to 5.5 V No external component needed Available in SO-8/14 packages and die 4-bit ADC or 12 levels Supply Voltage Level Detector (SVLD) Unique ID code of 52bits + 16bits CRC Max 4 (5.
  • ) outputs with 2 high drive outputs of 10mA Max. 5 (6.
  • ) inputs Sleep Counter Reset (automatic wake-up from sleep mode (EM patent)) Flash memory 4096 × 16 bits.

📥 Download Datasheet

Datasheet Details

Part number EM6580
Manufacturer EM Microelectronic
File Size 1.70 MB
Description Ultra Low Power 8-pin Flash Microcontroller
Datasheet download datasheet EM6580 Datasheet

📁 Similar Datasheet

  • EM658160 - 4M x 16 DDR Synchronous DRAM (Etron Technology Inc.)
  • EM65100 - 69 COM/ 101 SEG 4 Gray Level STN LCD Driver (ELAN Microelectronics)
  • EM65101 - 128COM/160SEG 16 Gray Scale Level LCD Driver (ELAN Microelectronics)
  • EM65168 - 80 COM/SEG LCD DRIVER (ELAN Microelectronics)
  • EM65168A - 80 COM/SEG LCD DRIVER (ELAN Microelectronics)
  • EM6517 - 4 BIT MICROCONTROLLER (ETC)
  • EM6521 - 4 bit Microcontroller (ETC)
  • EM65565A - 65 COM/ 132 SEG STN LCD Driver (ELAN Microelectronics)
  • EM65567 - 66 COM/ 96 SEG 256 Color STN LCD Driver (ELAN Microelectronics)
  • EM65568 - 130 COM/ 128 SEG 4096 Color STN LCD Driver (ELAN Microelectronics)
Other Datasheets by EM Microelectronic
  • EM6503 - (EM65xx) Mask Rom
  • EM6504 - (EM65xx) Mask Rom
  • EM6505 - (EM65xx) Mask Rom
  • EM6517 - (EM65xx) Mask Rom
  • EM6520 - (EM65xx) Mask Rom
  • EM6520 - MFP version of EM6620 Ultra Low Power Microcontroller 4x8 LCD Driver
  • EM6521 - (EM65xx) Mask Rom
  • EM6522 - (EM65xx) Mask Rom

Full PDF Text Transcription

Click to expand full text

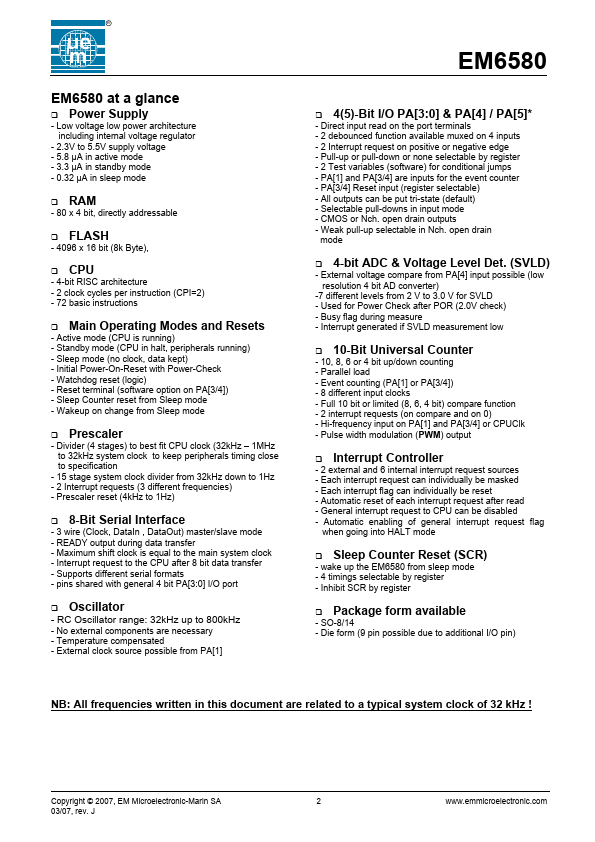

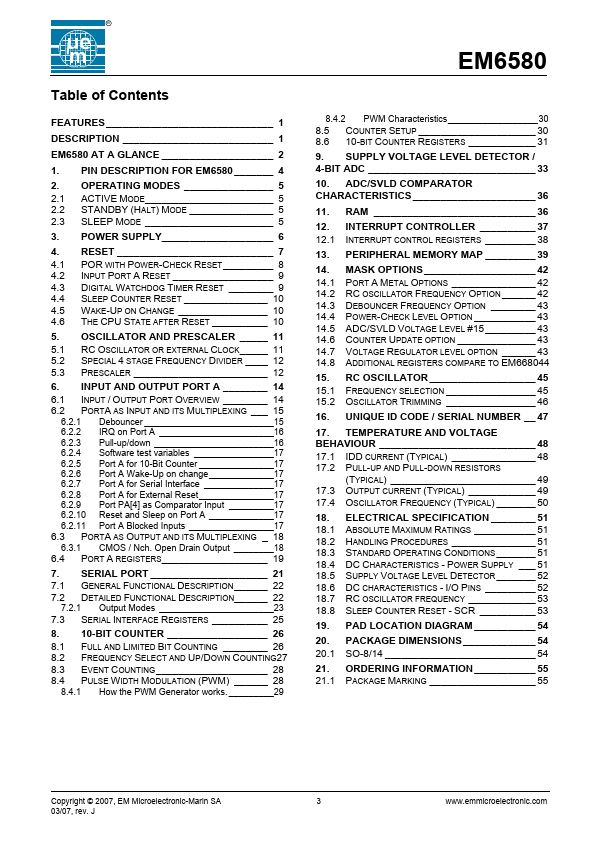

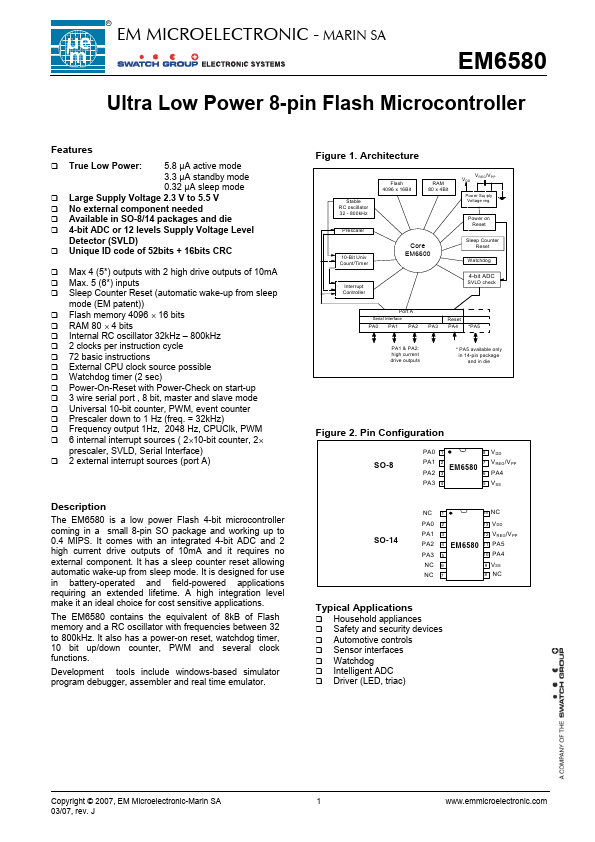

R www.DataSheet4U.com EM MICROELECTRONIC - MARIN SA EM6580 Ultra Low Power 8-pin Flash Microcontroller Features ‰ True Low Power: ‰ ‰ ‰ ‰ ‰ ‰ ‰ ‰ ‰ ‰ ‰ ‰ ‰ ‰ ‰ ‰ ‰ ‰ ‰ ‰ ‰ ‰ 5.8 µA active mode 3.3 µA standby mode 0.32 µA sleep mode Large Supply Voltage 2.0 V to 5.5 V No external component needed Available in SO-8/14 packages and die 4-bit ADC or 12 levels Supply Voltage Level Detector (SVLD) Unique ID code of 52bits + 16bits CRC Max 4 (5*) outputs with 2 high drive outputs of 10mA Max.
