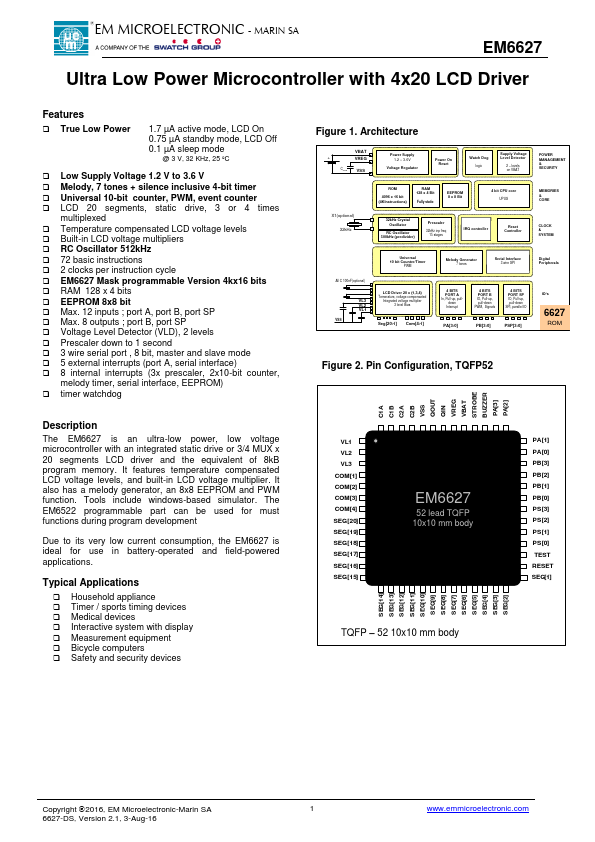

EM Microelectronic EM6627
The EM6627 is an ultra-low power, low voltage microcontroller with an integrated static drive or 3/4 MUX x 20 segments LCD driver and the equivalent of 8kB program memory. It features temperature compensated LCD voltage levels, and built-in LCD voltage multiplier. It also has a melody generator, an 8x8 EEPROM and PWM function.| Part No. | EM6627 |
|---|---|
| Datasheet | EM6627 Download |
| Manufacturer |  EM Microelectronic |
| Description | Ultra Low Power Microcontroller |
| Buy | Stock & Price |

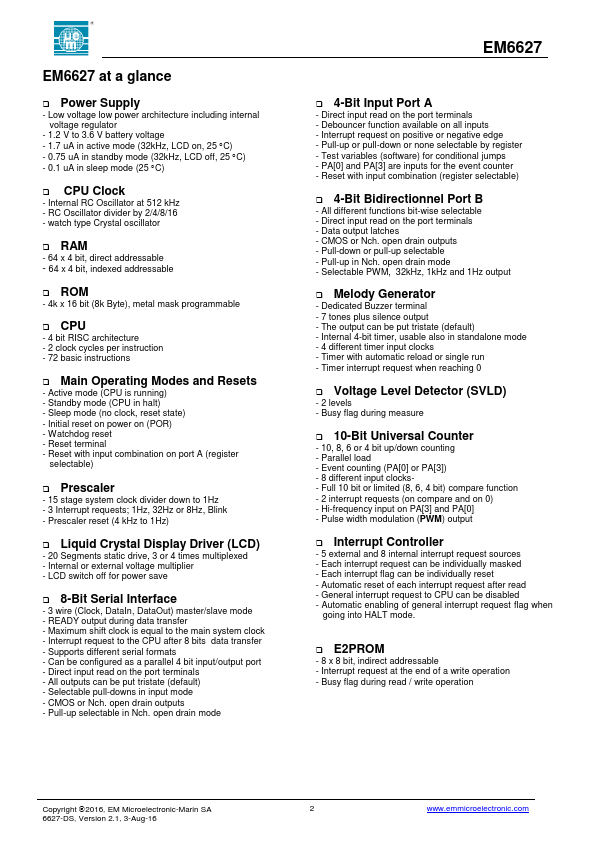

FEATURES
● True Low Power 1.7 µA active mode, LCD On 0.75 µA standby mode, LCD Off 0.1 µA sleep mode @ 3 V, 32 KHz, 25 ºC● Low Supply Voltage 1.2 V to 3.6 V
● Melody, 7 tones + silence inclusive 4-bit timer
● Universal 10-bit counter, PWM, event counter
● LCD 20 segments, static drive, 3 or 4 times multiplexed
● Temperature compensated LCD voltage levels
● Built-in LCD voltage multipliers
● RC Oscillator 512kHz
● 72 basic instructions
● 2 clocks per instruction cycle
● EM6627 Mask programmable Version 4kx16 bits
● RAM 128 x 4 bits
● EEPROM 8x8 bit
● Max. 12 inputs ; port A, port B, port SP
● Max. 8 outputs ; port B, port SP
● Voltage Level Detector (VLD), 2 levels
● Prescaler down to 1 second
● 3 wire serial port , 8 bit, master and slave mode
● 5 external interrupts (port A, serial interface)
● 8 internal interrupts (3x prescaler, 2x10-bit counter, melody timer, serial interface, EEPROM)
● timer watchdog
DESCRIPTION
Tools include windows-based simulator. The EM6522 programmable part...
