EM8502 - POWER MANAGEMENT CONTROLLER

General Description

The EM8502 is an integrated power management solution for low power applications.

It is designed to simplify the design of application using multiple solar cells in series that can be directly connected to the application and storage elements.

Key Features

  • Flexible operation with different energy banks.
  • Secondary cell battery.
  • Capacitors (gold-cap, super-cap).
  • Fast start-up on any energy storage.
  • Dual energy storage elements.
  • Start-up on solar cell or on battery.
  • Power management control.
  • Multiple independent supply outputs.
  • Sleep mode and wake-up functions.
  • User programmable under-voltage and over-voltage levels.
  • Configurable.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
EM85000 APPLE DESKTOP BUS MOUSE CONTROLLER ELAN Microelectronics Corp
EM85 Tube Lorenz
EM85 Tuning Indicator VALVES
EM8510 Digital Media Processors Sigma
EM8557A PWM Converter Excelliance MOS

Other Datasheets by EM Microelectronic (Swatch Group)

Part Number Description
EM8500 POWER MANAGEMENT CONTROLLER
EM8504 POWER MANAGEMENT CONTROLLER
EM8900 ULTRA-LOW VOLTAGE DCDC BOOST CONVERTER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

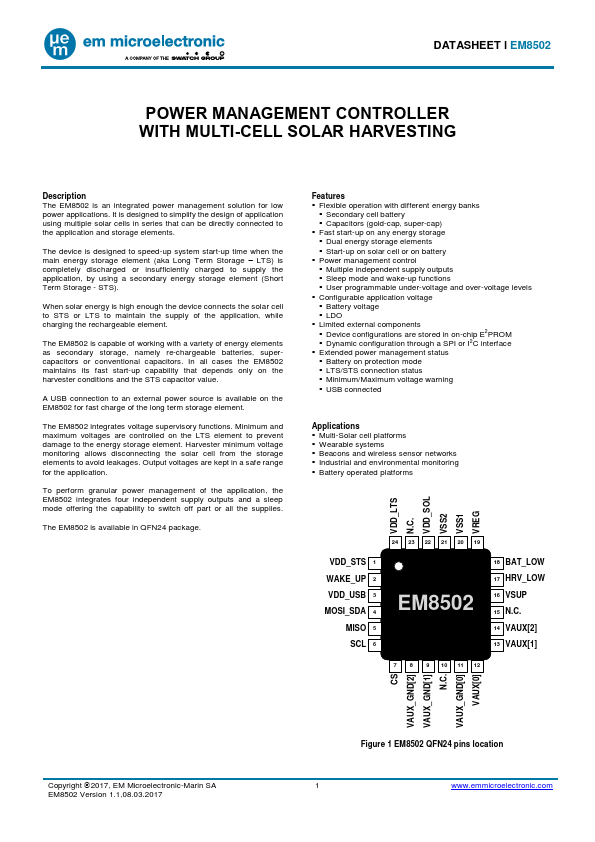

DATASHEET Ɩ EM8502 POWER MANAGEMENT CONTROLLER WITH MULTI-CELL SOLAR HARVESTING Description The EM8502 is an integrated power management solution for low power applications. It is designed to simplify the design of application using multiple solar cells in series that can be directly connected to the application and storage elements. The device is designed to speed-up system start-up time when the main energy storage element (aka Long Term Storage – LTS) is completely discharged or insufficiently charged to supply the application, by using a secondary energy storage element (Short Term Storage - STS). When solar energy is high enough the device connects the solar cell to STS or LTS to maintain the supply of the application, while charging the rechargeable element.
