EM9304 - Bluetooth5.0 low-energy COMPANION-or-SOC

Datasheet Summary

Description

The EM9304 is a tiny, low-power, integrated circuit (IC) optimized for Bluetooth® 5.0 low energy enabled products.

The flexible architecture of the EM9304 allows it to act as a companion IC to any ASIC or MCU-based product, or as a complete System-on-Chip (SoC).

Features

  • a state-of-the-art 2.4GHz transceiver: an extremely low-power receiver with excellent sensitivity/selectivity, and a programmable transmitter for optimized output power and current consumption. The PCB footprint and cost is minimized with a very low external component count and several package options. The circuit is offered in a WLCSP25 wafer level chip-scale package, a plastic QFN-28 package, and bare die/ wafer form. The device and reference design is qualified over the industrial temperature.

📥 Download Datasheet

Datasheet preview – EM9304

Datasheet Details

Part number EM9304
Manufacturer EM Microelectronic
File Size 1.46 MB
Description Bluetooth5.0 low-energy COMPANION-or-SOC
Datasheet download datasheet EM9304 Datasheet
Additional preview pages of the EM9304 datasheet.

📁 Similar Datasheet

  • EM9010 - Advanced Multimedia Analog Overlay Chip (Sigma Designs)
  • EM9038 - Analog Multiplexor And Digital-to-analog Converter (Sigma Designs)
  • EM91203 - TONE/PULSE SWITCHABLE DIALER WITH LCD INTERFACE (ELAN Microelectronics Corp)
  • EM91203A - TONE/PULSE SWITCHABLE DIALER WITH LCD INTERFACE (ELAN Microelectronics Corp)
  • EM91203B - TONE/PULSE SWITCHABLE DIALER WITH LCD INTERFACE (ELAN Microelectronics Corp)
  • EM91203C - TONE/PULSE SWITCHABLE DIALER WITH LCD INTERFACE (ELAN Microelectronics Corp)
  • EM91210 - TONE/PULSE SWITCHABLE DIALER WITH LCD INTERFACE (ELAN Microelectronics Corp)
  • EM91210A - TONE/PULSE SWITCHABLE DIALER WITH LCD INTERFACE (ELAN Microelectronics Corp)
  • EM91210B - TONE/PULSE SWITCHABLE DIALER WITH LCD INTERFACE (ELAN Microelectronics Corp)
  • EM91210C - TONE/PULSE SWITCHABLE DIALER WITH LCD INTERFACE (ELAN Microelectronics Corp)
Other Datasheets by EM Microelectronic
  • EM9301 - Single-Cell Battery Bluetooth Low-Energy Controller
  • EM9305 - BLUETOOTH LE SOC AND COMPANION CHIP
  • EM9201 - Low power 2.4 GHz Transceiver
  • EM9202 - Worlds First Fully Integrated Single-Cell Battery 2.4GHz Transceiver
  • EM9203 - 2.4GHz GFSK Transceiver
  • EM9209 - FSK Transceiver

Full PDF Text Transcription

Click to expand full text

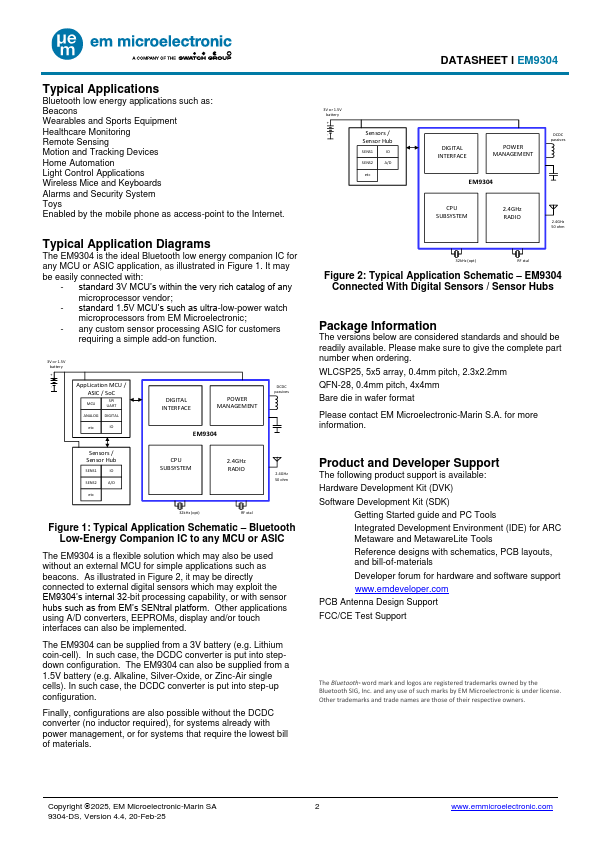

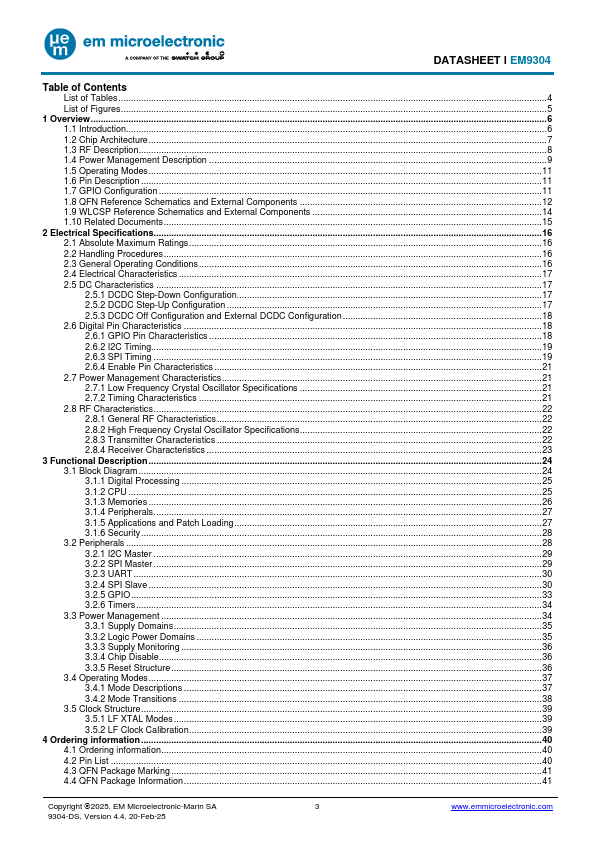

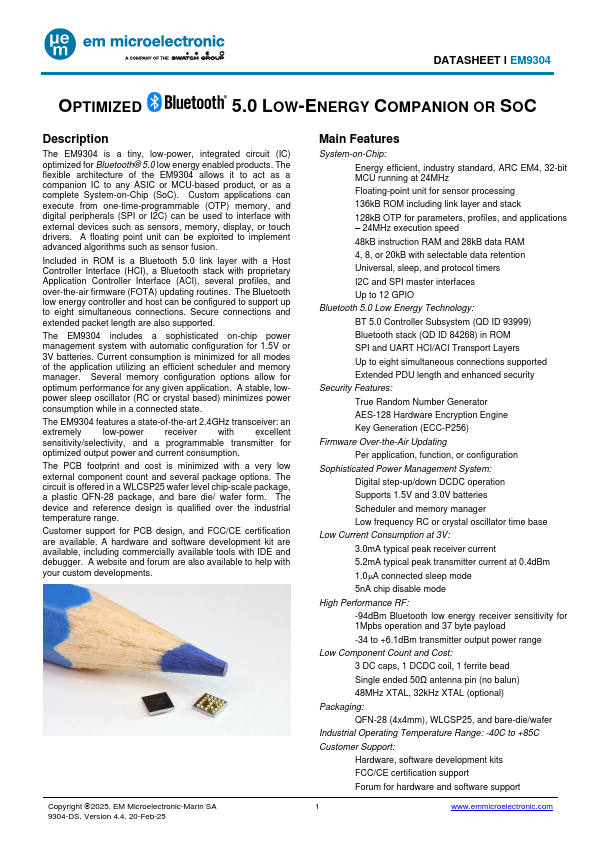

DATASHEET Ɩ EM9304 OPTIMIZED 5.0 LOW-ENERGY COMPANION OR SOC Description The EM9304 is a tiny, low-power, integrated circuit (IC) optimized for Bluetooth® 5.0 low energy enabled products. The flexible architecture of the EM9304 allows it to act as a companion IC to any ASIC or MCU-based product, or as a complete System-on-Chip (SoC). Custom applications can execute from one-time-programmable (OTP) memory, and digital peripherals (SPI or I2C) can be used to interface with external devices such as sensors, memory, display, or touch drivers. A floating point unit can be exploited to implement advanced algorithms such as sensor fusion. Included in ROM is a Bluetooth 5.
