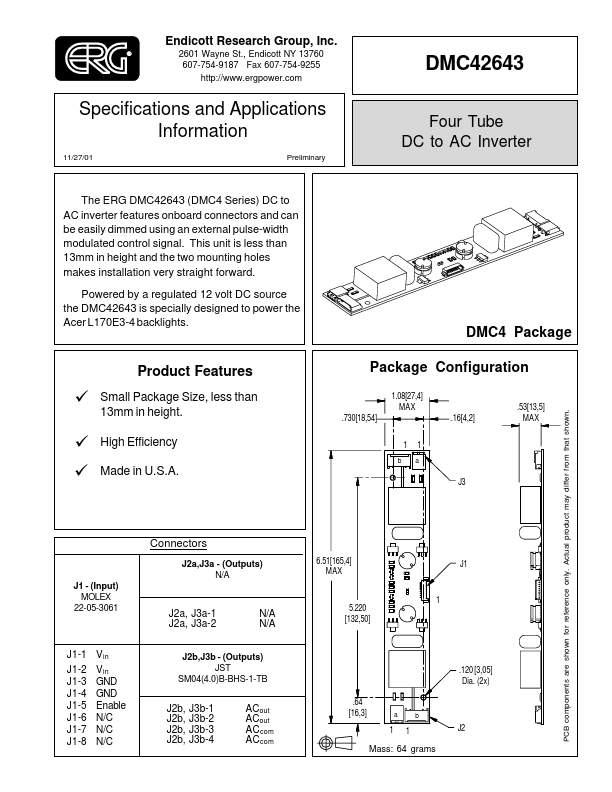

DMC42643
features onboard connectors and can be easily dimmed using an external pulse-width modulated control signal. This unit is less than 13mm in height and the two mounting holes makes installation very straight forward.
Powered by a regulated 12 volt DC source the DMC42643 is specially designed to power the Acer L170E3-4 backlights.
Product Features
ü Small Package Size, less than
13mm in height.
ü High Efficiency ü Made in U.S.A.
DMC4 Package
Package Configuration
.730[18,54]
1.08[27,4] MAX
.16[4,2]
.53[13,5] MAX
11 ba
J3
PCB ponents are shown for reference only. Actual product may differ from that shown.
J1
- (Input) MOLEX
22-05-3061
Connectors
J2a,J3a
- (Outputs) N/A
J2a, J3a-1
N/A
J2a, J3a-2
N/A
J1-1
J1-2 J1-3 J1-4 J1-5 J1-6 J1-7 J1-8
Vin
Vin GND GND Enable N/C N/C N/C
J2b,J3b
- (Outputs) JST
SM04(4.0)B-BHS-1-TB
J2b, J3b-1 J2b, J3b-2 J2b, J3b-3 J2b, J3b-4
ACout ACout AC AC
6.51[165,4] MAX
5.220 [132,50]
J1 1
.64 [16,3] ab 11
Mass: 64 grams
.120 [3,05] Dia....
