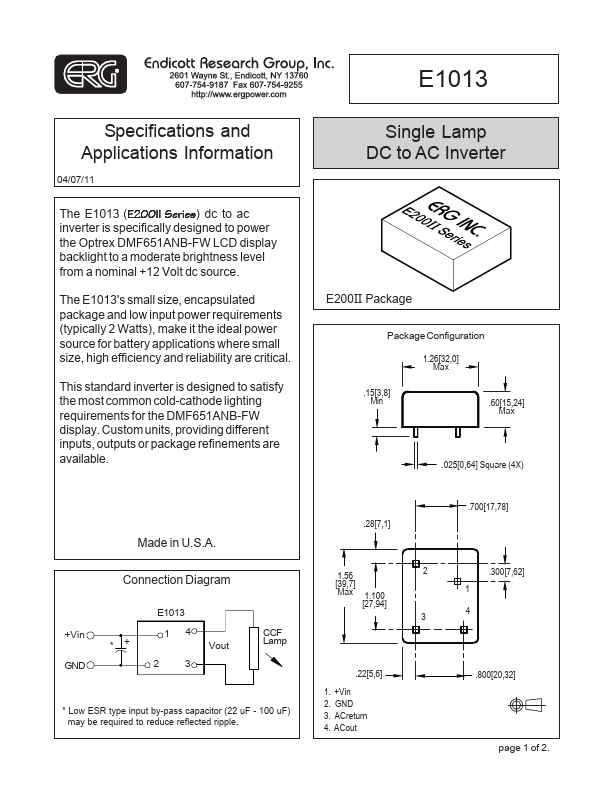

E1013
Specifications and Applications Information
04/07/11
The E1013 (E200II Series) dc to ac inverter is specifically designed to power the Optrex DMF651ANB-FW LCD display backlight to a moderate brightness level from a nominal +12 Volt dc source.
The E1013's small size, encapsulated package and low input power requirements (typically 2 Watts), make it the ideal power source for battery applications where small size, high efficiency and reliability are critical.
This standard inverter is designed to satisfy the most mon cold-cathode lighting requirements for the DMF651ANB-FW display. Custom units, providing different inputs, outputs or package refinements are available.
Single Lamp DC to AC Inverter
E200II Package
Package Configuration 1.26[32,0] Max
.15[3,8] Min
.60[15,24] Max
.025[0,64] Square (4X)
Made in U.S.A.
Connection Diagram
+Vin GND
- +
E1013 14
Vout
CCF Lamp
- Low ESR type input by-pass capacitor (22 u F
- 100 u F) may be required to reduce reflected...
