APPLICATIONS

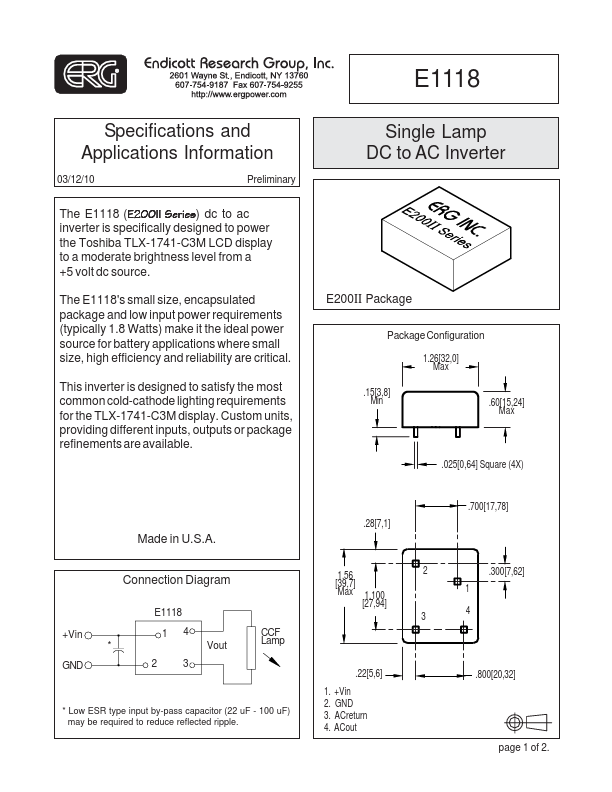

Information 03/12/10 Preliminary Custom units, providing different inputs, outputs or package refinements are available. Single Lamp DC to AC Inverter E200II Package Package Configuration 1.26[32,0] Max .15[3,8] Min .60[15,24] Max .025[0,64] Square (4X) Made in U.S.A. Connection Diagram +Vin * GND E1118 14 2 3 Vout CCF Lamp * Low ESR type input by-pass capacitor (22 uF - 100 uF) may be required to reduce reflected ripple. .28[7,1] 1.56 2 [39,7] Max 1.100 [27,94] 3 .22[5,6] 1. +Vin 2. GND 3. ACreturn 4. ACout .700[17,78] .300[7,62] 1 4 .800[20,32] page 1 of 2. E1118 ABSOLUTE MAXIMUM RATINGS

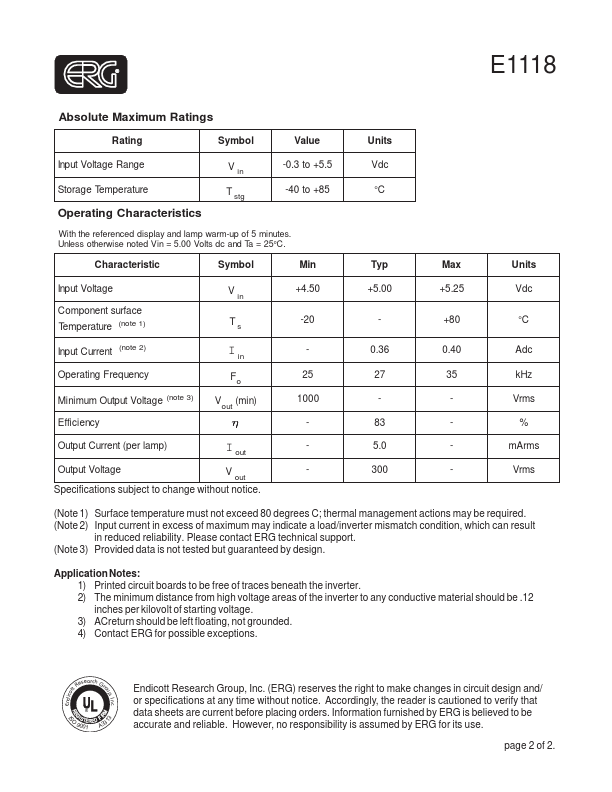

Rating Symbol Value Units Input Voltage Range V in -0.3 to +5.5 Vdc Storage Temperature T stg -40 to +85 oC Operating Characteristics With the referenced display and lamp warm-up of 5 minutes. Unless otherwise noted Vin = 5.00 Volts dc and Ta = 25oC. Characteristic Symbol Min Typ Max Units Input Voltage Component surface Temperature (note 1) Input Current (note 2) Operating Frequency Min...
ERG
